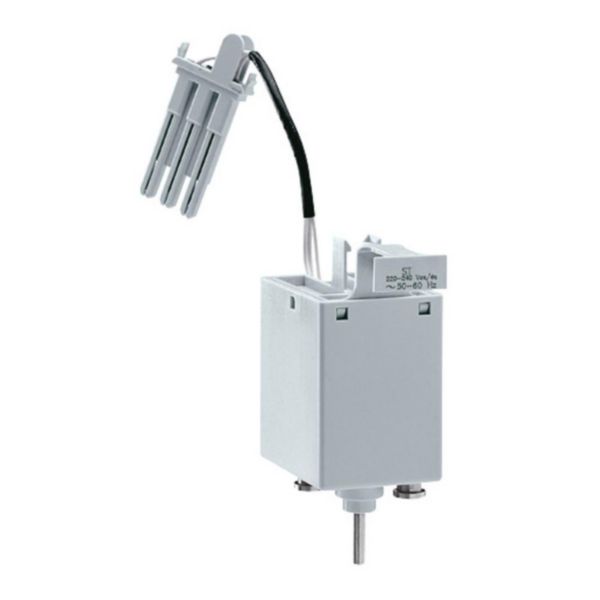

Name: Shunt trip for DMX³ 2500 and 4000 - 48 V~/=
SKU: 028849

Shunt trip for DMX³ 2500 and 4000 - 48 V~/=

LEGRAND

Shunt trip for DMX³ 2500 and 4000 - 48 V~/=

REF. 028849 EAN. 3245060288495

Compare You can only compare 4 products, you must remove 1 to add this one

Auxiliaries and Accessories for DMX³ 2500, 4000 and 6300
Control and signalling auxiliaries Shunt trip - When energised the circuit breaker will be tripped - 48 V~/=

Rated control supply voltage AC 50 Hz (Min-Max)	48-48 V
Rated control supply voltage AC 60 Hz (Min-Max)	48-48 V
Rated control supply voltage DC (Min-Max)	48-48 V
Voltage type for actuating	AC/DC
Type of electric connection	Other
Number of contacts as normally open contact	0

Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Suitable for power circuit breaker	Yes
Suitable for off-load switch	Yes
Suitable for motor safety switch	Yes
Suitable for overload relay	Yes

5 documents

Select all

Instruction Use

Y2921F.pdf pdf (10.2 Mo)

Workshop Book

Workshop Book: DMX-SP 2500 and DMX-SP 4000 pdf (41.85 Mo)

Workshop Book

Cahier d'atelier : DMX-SP 2500 et DMX-SP 4000 pdf (41.94 Mo)

Workshop Book

Cahier d'atelier : disjoncteurs ouverts DMX-SP pdf (137.59 Mo)

Workshop Book

Workshop specifications DMX-SP pdf (136.45 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0206.pdf pdf (0.11 Mo)

Catalogue Commercial Page

ex223001_0220.pdf pdf (0.11 Mo)
