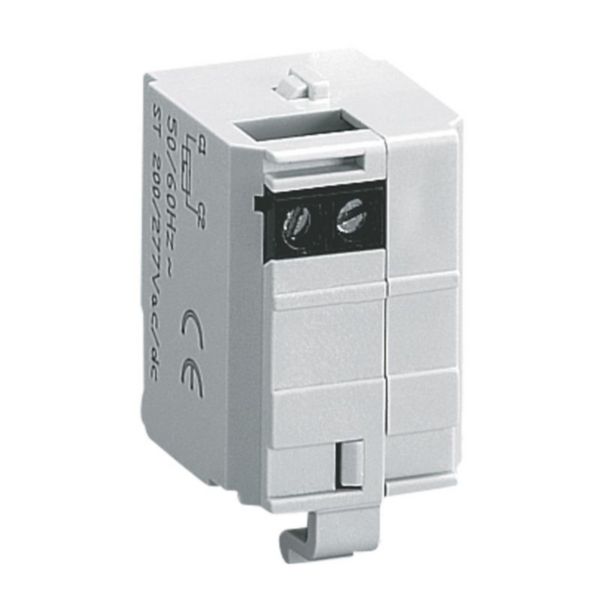

Name: Shunt release 200V-277V for DPX³160/250, DPX³-I 160/250 and DPX³/DPX³-I 160HP/250HP
SKU: 421016

Shunt release 200V-277V for DPX³160/250, DPX³-I 160/250 and DPX³/DPX³-I 160HP/250HP

DPX³ 1600 LEGRAND

Shunt release 200V-277V for DPX³160/250, DPX³-I 160/250 and DPX³/DPX³-I 160HP/250HP

REF. 421016 EAN. 3245064210164

DPX³, auxiliary for moulded case circuit breaker and trip-free switch

Compare You can only compare 4 products, you must remove 1 to add this one

DPX³, auxiliary for moulded case circuit breaker and trip-free switch

Allow remote tripping of a DPX³160, DPX³250, DPX³125HP, DPX³250HP, DPX³-I160, DPX³-I250, DPX³-I125HP, DPX³-I250HP
Coil voltage 200 to 270V~/=
Maximum power: 400 V~/W

Rated control supply voltage AC 50 Hz	200-277 V
Rated control supply voltage AC 60 Hz	200-277 V
Voltage type for actuating	AC
Type of electric connection	Screw connection
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0

Number of contacts as change-over contact	0
Suitable for power circuit breaker	Yes
Suitable for off-load switch	Yes
Suitable for motor safety switch	Yes
Suitable for overload relay	Yes
