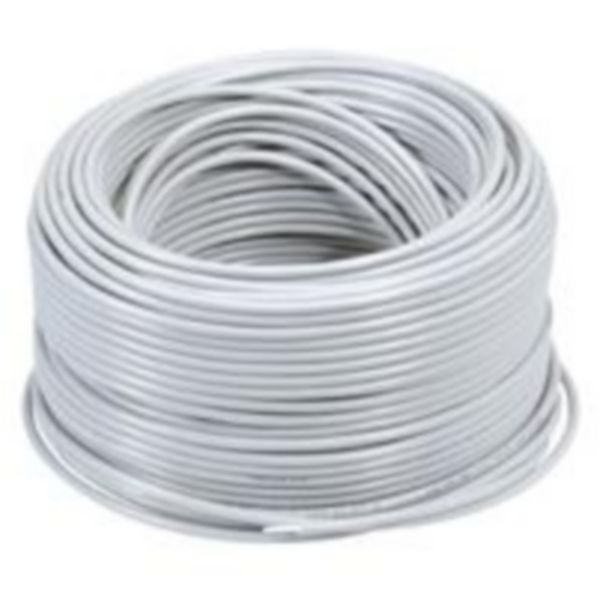

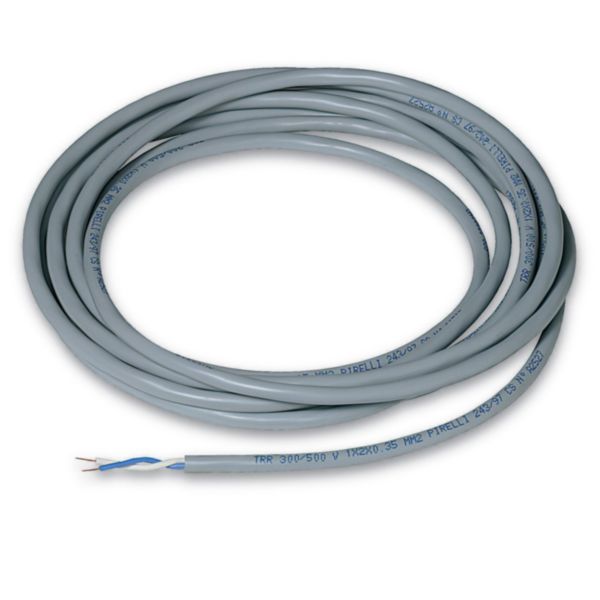

Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.

Name: Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.
SKU: L4669/500

My Home Up BTICINO

REF. L4669/500 EAN. 8012199654294

Compare You can only compare 4 products, you must remove 1 to add this one

Conductor material	Copper
Nominal cross section conductor	0.35 mm²
Diameter conductor	1.95 mm
Conductor category	Class 2 = stranded
Number of cores	2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
With protective conductor	No
Max. permitted conductor temperature	70 °C
Screen	No
Drain wire	No

Protective barrier	None
Armouring/reinforcement	None
Material outer sheath	Polyvinyl chloride (PVC)
Colour outer sheath	Grey
Low smoke according to EN IEC 61034-2	No
Outer diameter approximate	5.5 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	-15-70 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-15-70 °C
Nominal voltage U0	300 V
Nominal voltage U	500 V
