Set of brush cable entry

Linkeo LEGRAND

Set of brush cable entry

REF. 646428 EAN. 3414970515568

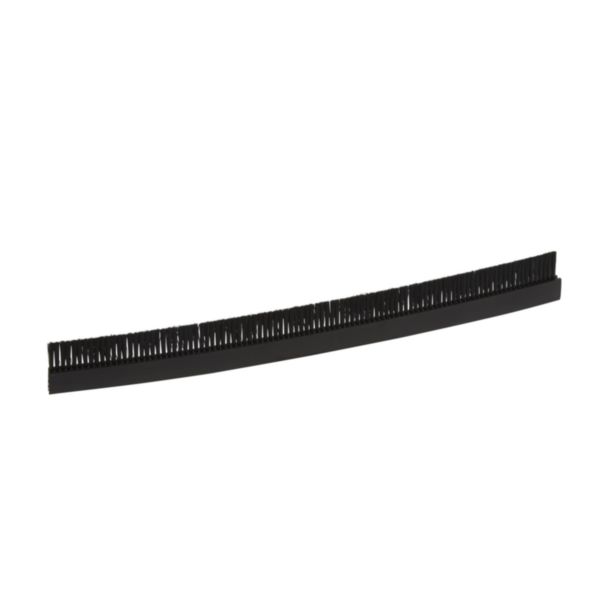

Linkeo equipment for rack cabinet, brush cable entry set with one flexible and one stiff polyamide-fiber brush. Its 404mm black plastic plate with rubber frame fits pre-cut entries, enabling screwless mounting.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Linkeo equipment for rack cabinet, brush cable entry set with one flexible and one stiff polyamide-fiber brush. Its 404mm black plastic plate with rubber frame fits pre-cut entries, enabling screwless mounting.

Product characteristics
  • One flexible brush and one stiff brush with polyamide fibres
  • Rubber frame
  • Black
  • Polyamide fibres
  • Black
Recommendation / Restriction
  • Fix directly the two brushes to the cabinet end plate once you have knocked out the cut-out with a mallet.

The product's benefits

Installation
  • Pre-cut cable entry to facilitate the installation of the set of brushes. No screw needed
Usage
  • Facilitates the management of the cables.

Technical characteristics

Model Brush
Type Straight
Width 404 mm
Material Plastic
Surface protection Untreated
Degree of protection (NEMA) Other
Pre-stamping No
Thread type None
Colour Black

Documentation

5 documents
Instruction Use
LE09826AA-02.pdf pdf (1.38 Mo)
Technical Sheet
F02420EN-01.pdf pdf (2.28 Mo)
Technical Sheet
F02421FR-01.pdf pdf (2.29 Mo)
Instruction Use
LE09825AA-03.pdf pdf (1.09 Mo)
Technical Sheet
F02420FR-01.pdf pdf (2.28 Mo)
2 documents
Catalogue Commercial Page
ex223001_0944.pdf pdf (0.14 Mo)
Catalogue Commercial Page
ex223001_0943.pdf pdf (0.07 Mo)
