Set of 6 hexagonal cable throughs

LCS³ LEGRAND

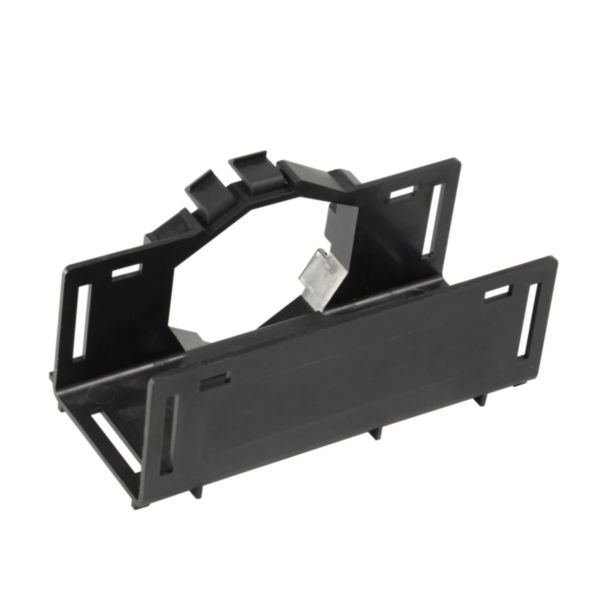

Set of 6 hexagonal cable throughs

REF. 446154 EAN. 3414971173705

Universal cable troughs snap into the hex pattern on the open channel racks and are used to create a front to rear or vertical trough on the inside or outside of the channel

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Universal cable troughs snap into the hex pattern on the open channel racks and are used to create a front to rear or vertical trough on the inside or outside of the channel

Product characteristics
  • The 2” x 2” size is equipped with slots to allow it to be joined to Open racks Fiber Raceway.
  • HiLOC ready : Up to 3 HiLOC harness shells can be snapped into the cable trough providing Zero “U” connectivity for switches and servers.
  • Hex design : Allows trough to be rotated in 30 degree increments for pathway transition from horizontal to vertical.
  • Snaps into the hex pattern on open channel racks: Creates a front to rear pathway for cables between racks.
  • Colour black

The product's benefits

Installation
  • They can be mounted in a row to create a continuous trough or rotated at 30 degree increments to support cables through directional changes. Up to 3 HiLOC harnesses can be toollessly mounted into each trough.

Technical characteristics

Model Fibre optic cable guide
Material Plastic
Suitable for 19 inch mounting No
Height 12.7 mm
Width 76.2 mm
Length 133.35 mm
Number of height units 0
Colour Black

Documentation

1 document
Technical Sheet
1 document
Catalogue Commercial Page
ex223001_1014.pdf pdf (0.38 Mo)
