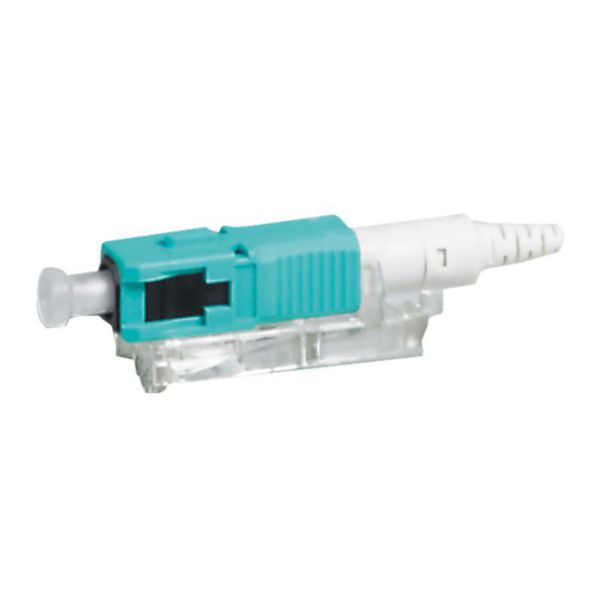

Set of 12 quick-connect connector OM3-OM4 multi-mode connector SC PC 50/125μm, 900/250μm

LCS³ LEGRAND

Set of 12 quick-connect connector OM3-OM4 multi-mode connector SC PC 50/125μm, 900/250μm

REF. 032272 EAN. 3414970958532

Indoor termination of fiber cables : patch panels, communication outlets, Fiber-to-the-desk, FTTH, distribution frames, campus, customer premise, access network, data centers

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Indoor termination of fiber cables : patch panels, communication outlets, Fiber-to-the-desk, FTTH, distribution frames, campus, customer premise, access network, data centers

Product characteristics
  • OM3/OM4 multi-mode
  • Connector SC PC 50/125μm, 900/250μm
  • Aqua
Recommendation / Restriction
  • Preparation to be done with tool case ref. 032270. For 250 μm fibre optic use dedicated tubes, delivered with the connector, typical IL multimode OM3/OM4 = 0.1 db. Compliant with IEC 61754-20.

The product's benefits

Installation
  • Easy to connect, reliable and reusable up to 5 times. Enable the locking of the fibre optic inside the connector. No glue or polishing required.
Usage
  • Can be installed on 900 μm fibre optics

Technical characteristics

Model Connector
Suitable for type of fibre Multi mode
Type of connector SC
APC-version No
Connection type Clamping
Material of ferrule Other
Colour Turquoise

Documentation

2 documents
Technical Sheet
S000095094FR-01.pdf pdf (0.07 Mo)
Technical Sheet
S000095094EN-01.pdf pdf (0.07 Mo)
1 document
Catalogue Commercial Page
ex223001_1003.pdf pdf (0.12 Mo)
