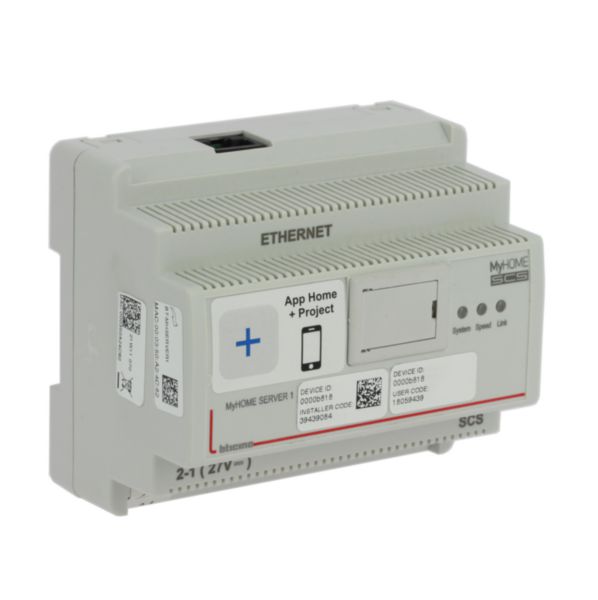

Server for devices association during the system starting-up and for the local and remote management of the functions.

My Home Up BTICINO

Server for devices association during the system starting-up and for the local and remote management of the functions.

REF. BTMYHOMESERVER1 EAN. 8005543574546
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 6 modules
  • Rated voltage 27 V d.c.

The product's benefits

Installation
  • It allows you to configure the system also without internet installation
Usage
  • One app dedicated to installer (Home + Project) and one app dedicated to end user (Home + Control)

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Model Ethernet interface
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 6
Number of channels 175
Demounting protection No
With LED indication Yes
Updateable Yes
Operating voltage (Min-Max) 18-27 V
Voltage type DC
Protocol TCP/IP
Provider dependent No
Visualization No
Web-Server Yes
Radio interface No
IR interface No
Degree of protection (IP) IP30
Width 106 mm
Height 90 mm
Depth 66 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) 5-35 °C
Storage temperature (Min-Max) -10-70 °C
Supply current (Min-Max) 0.003-0.160 A
Terminal marking indication Yes
Type of load Not applicable
Halogen free Yes
Connection type Screwed terminal , Cable
Label space/information surface No
Fitted with USB plug Yes
Addressable Yes
Connected object Yes
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Amazon Alexa , Google Assistant
Product use function Control & command systems
Application name Home + Control
Programming way Smartphone apps
Software Update Duration (years) 3

Documentation

6 documents
Technical Sheet
ST-00001031-FR.pdf pdf (0.18 Mo)
Technical Guide
RA00149AH_I_EN.pdf pdf (26.11 Mo)
Technical Guide
RA00149AH_U_FR.pdf pdf (19.18 Mo)
Technical Guide
RA00149AH_I_FR.pdf pdf (25.97 Mo)
Technical Sheet
ST-00001031-EN.pdf pdf (0.18 Mo)
Technical Guide
RA00149AH_U_EN.pdf pdf (19.02 Mo)
2 documents
Catalogue Technical Page
ex223001_0639.pdf pdf (0.09 Mo)
Catalogue Commercial Page
ex223001_0638.pdf pdf (0.08 Mo)
