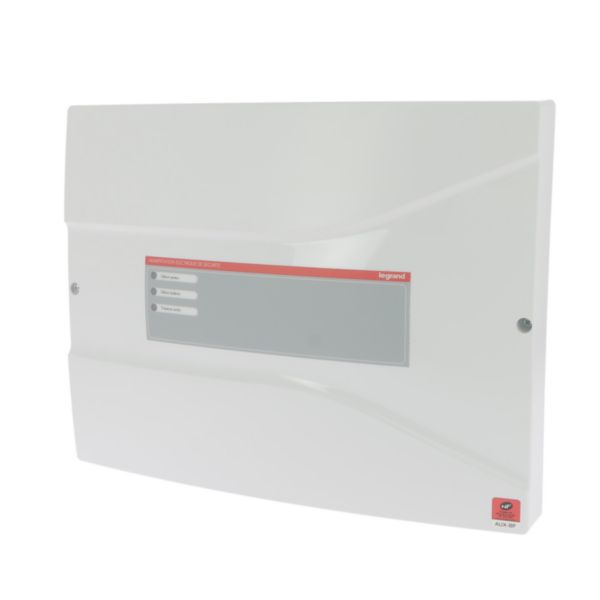

Safety power supply equipement 24VDC 2A

Name: Safety power supply equipement 24VDC 2A
SKU: 040513

Legrand

REF. 040513 EAN. 3414972640183

Compare You can only compare 4 products, you must remove 1 to add this one

Voltage type (supply voltage)	AC
1st secondary output voltage (Min-Max)	21.6-28.8 V
2nd secondary output voltage (Min-Max)	21.6-28.8 V
Max. output current 1	2 A
Max. output current 2	2 A
Secondary voltage adjustable	No
Nominal value output voltage 1	24 V
Nominal value output voltage 2	24 V
Rated supply voltage AC 50 Hz (Min-Max)	98-264 V
Rated supply voltage AC 60 Hz (Min-Max)	98-264 V
Output voltage stabilized	Yes
Power output	50 W
Stabilized	Yes
Type of electric connection	Screw connection
Suitable for rail mounting	No
Suitable for wall mounting	Yes
Suitable for distribution board	No
Built-in width	0 mm
Built-in height	0 mm

Direct mounting possible	Yes
Width	322 mm
Height	248 mm
Depth	126 mm
Suitable for safety functions	Yes
SIL according to IEC 61508	None
Performance level according to EN ISO 13849-1	None
Degree of protection (IP)	IP30
Operating / setting temperature (Min-Max)	-5-+40 °C
Storage temperature (Min-Max)	-25-+85 °C
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the rear of the product
Terminal marking indication	Yes
Connection type	Screwed terminal
Terminals capacity (Min-Max)	1.5-1.5 mm²
Label space/information surface	No
Contains Batteries and/or Accumulator	No
Battery ou Accumulator (Pack1)	Not applicable

1 document

Select all

Technical Guide

LE14600AA.pdf pdf (1.08 Mo)

3 documents

Select all

Agreement

NFSSI Composant-EAE 034 A-A0 (0.28 Mo)

Declaration of performance

DOP-DOP-0786-CPR-50642 (0.76 Mo)

Declaration of performance

DOP-0786-CPR-50642 (0.75 Mo)
