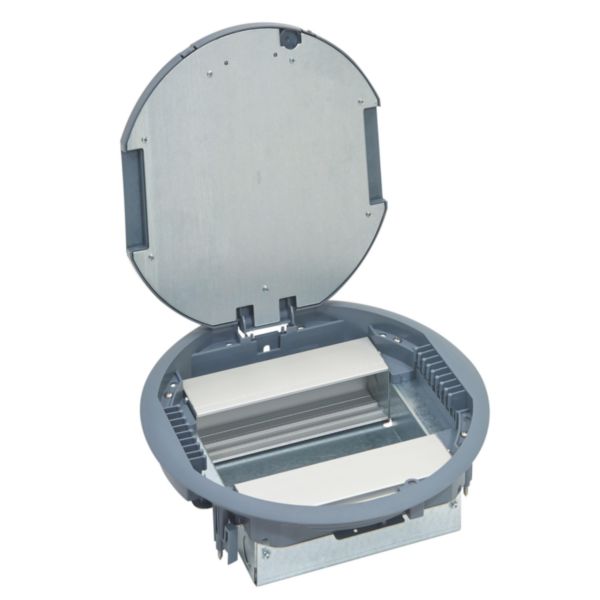

Round plastic floor box with vertical wiring devices supports, capacity up to 16 modules.

Name: Round plastic floor box with vertical wiring devices supports, capacity up to 16 modules.
SKU: 088127

LEGRAND

Round plastic floor box with vertical wiring devices supports, capacity up to 16 modules.

REF. 088127 EAN. 3414970756114

The floor box enables power and data supply to workstations, with vertical supports compatible with Mosaic and Arteor devices. It offers IP24 protection with lid closed, 500N load resistance, flexible cable outlets.

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Description

Product characteristics

Adapted to any kind of floor (raised floors, screed floors) and any kind of coating (up to 8 mm thickness)
Supports compatible with the wiring devices Legrand Mosaic and Arteor. Flexible knockout cable outputs to facilitate the installation
Discreet and easy opening by one hand thanks to its integrated ring.
Supports meet the IEC/EN 60670-23 standard. Moreover, with the lid of floor box closed, they offer a degree of protection IP24 (no risk of digital contact on the electrical connections, and protection against water projections)
Once mounted, the floor box have a global load resistance 500N (vertical load applied through a little surface)

Recommendation / Restriction

Indoor use only.

The product's benefits

Installation

Floor fixation screws 2 in 1: reversible depending on the floor depth to clamp.

Usage

Removable lid to facilitate connections to the wiring devices

Avantages

Two cable outlets on opposite sides and which are flexible in order to mould the plugged cords and get back their initial position when not used.
Possibility to add a locking system with or without key.

Technical characteristics

Cover model	Rectangular
Number of device cups	1
Housing material	Other
Surface protection housing	Other
With opening carpeting	Yes
Depth of flooring recess	8 mm
Protective frame carpeting	Yes
Colour	Grey

RAL-number	7031
Suitable for subfloor duct	No
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for wet cleaning	Yes
Outer diameter	300 mm
Built-in diameter	275 mm
Min. built-in depth	72 mm
