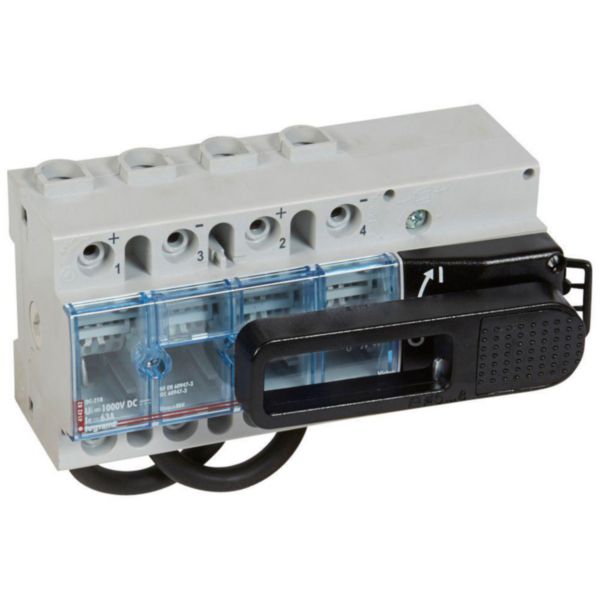

Rotary Switch Disconnector - Modular Design - 63A - 1000V DC - 9 Modules - Visible Sectioning - Double Break Contacts - Photovoltaic

Legrand

Rotary Switch Disconnector - Modular Design - 63A - 1000V DC - 9 Modules - Visible Sectioning - Double Break Contacts - Photovoltaic

REF. 414282 EAN. 3245064142823
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Version as reversing switch No
Max. rated operation voltage Ue AC 1000 V
Rated operating voltage (Min-Max) 1000-1000 V
Rated permanent current Iu 63 A
Rated short-time withstand current lcw 0.8 kA
Conditioned rated short-circuit current Iq 800 kA
Number of poles 2
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 0
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Suitable for floor mounting No
Suitable for front mounting 4-hole Yes
Suitable for front mounting centre Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Colour control element Red
Type of control element Short rotary handle
Interlockable Yes
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP2X

Documentation

3 documents
Instruction Use
LE04840AA_04.pdf pdf (0.23 Mo)
Technical Sheet
F01457FR_01.pdf pdf (0.77 Mo)
Technical Sheet
FR1457EN_01.pdf pdf (0.71 Mo)
1 document
3D Autocad
414281.dwg dwg (0.16 Mo)
