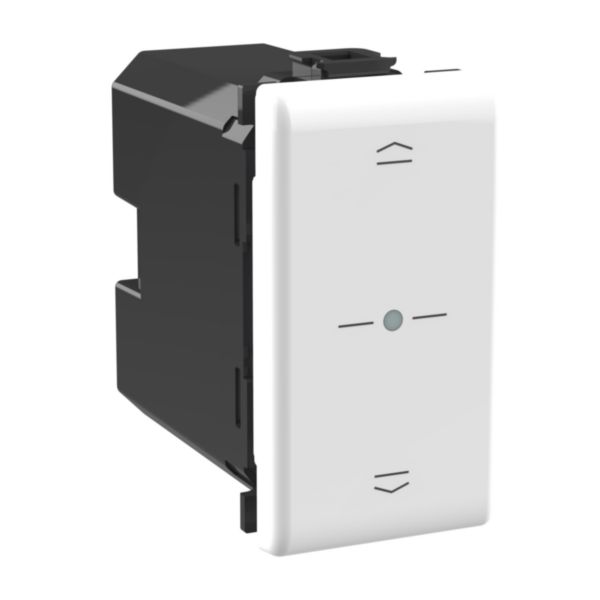

Rolling shutter wireless switch 1 Module - Matix - 2400MHz Radio Frequency - 185m Range - Voice Assistant Compatible

Name: Rolling shutter wireless switch 1 Module - Matix - 2400MHz Radio Frequency - 185m Range - Voice Assistant Compatible
SKU: AM4027CWI

Matix Bticino

REF. AM4027CWI EAN. 8005543678824

Compare You can only compare 4 products, you must remove 1 to add this one

Up/down/stop function for precise control of rolling shutters via 2400MHz radio frequency with 185m range
LED indicator with integrated low battery warning ensures reliable operation and maintenance
Supplied with a replaceable CR2032 lithium battery offering up to 8 years of service life
Flush-mounted design with IP40 protection and compact dimensions (23x44x44.5mm) for seamless integration
White (RAL 9003), halogen-free finish for modern aesthetics and enhanced safety

To pair your roller shutter wireless switch, you first need to purchase and install a Matix with Netatmo gateway, as well as one or more Matix with Netatmo connected roller shutter switches

Radio frequency	2400 MHz
Rolling code system	Yes
Code length (Bit)	128
Range	185 m
Number of commands	2
With manual radio transmitter	Yes
Flush-mounted radio transmitter	Yes
Surface mounted radio transmitter	No
With radio coding device	Yes
Degree of protection (IP)	IP40
Keyboard protection cover	No
Current supply	Battery
Width	23 mm
Height	44 mm
Depth	44.5 mm
Built-in depth	36 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Standby consumption	2.1 mA
Mandatory neutral	No
Stress test conformity (1000V)	No
Colour	White
RAL-number	9003

Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Contains Batteries and/or Accumulator	Yes
IEC code (Pack1)	CR2032
Battery ou Accumulator (Pack1)	Battery (not rechargeable)
Element Composition (Pack1)	Lithium (battery or accumulator)
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	3 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	Google Play Store , App Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Lighting management
Application name	Home + Control
Programming way	Smartphone apps

2 documents

Select all

Instruction Use

LE12516AA.pdf pdf (1.38 Mo)

Technical Sheet

IDP001544_02-EN.pdf pdf (0.36 Mo)

1 document

Select all

Agreement

Decl. UE RED-A 4407 A (0.43 Mo)
