RJ45 field plug to be crimped Category 6 FTP

LCS³ LEGRAND

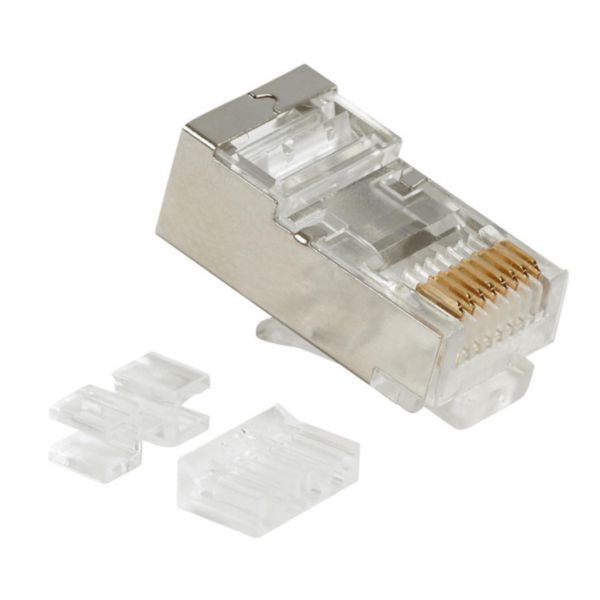

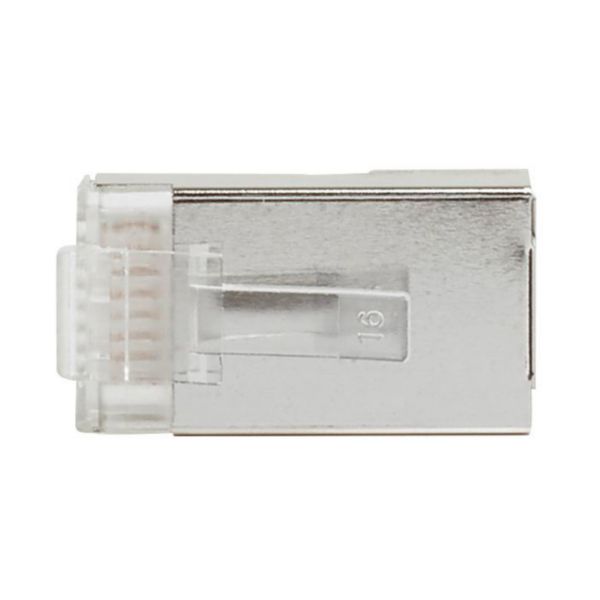

RJ45 field plug to be crimped Category 6 FTP

REF. 051711 EAN. 3414972093934

RJ plugs for RJ11, RJ12 and RJ45 sockets, 2 crimping zones, sleeve and conductor. RJ45 : modular jack 8P8C ( 8 positions and 8 electrical contacts) commonly used for Ethernet connections, and for telephone connectors.

You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Plug
Type of connector RJ45 8(8)
Screened Yes
Category 6
Connection type Crimp
Special tool necessary Yes
Suitable for round cable Yes
Suitable for flat cable Yes
Suitable for litz wire conductor Yes
Suitable for solid conductors Yes
Colour Other
AWG-range 23-26
Width 11.68 mm
Height 1107 mm
Depth 22.8 mm
Operating / setting temperature -40-80 °C
Storage temperature -40-80 °C
Terminal marking indication No
Antimicrobial treatment No
Label space/information surface No
Mounting method Not applicable
Maximum Input cable diameter 6.5 mm
Entry membrane gland type Not applicable

Documentation

2 documents
Technical Sheet
S000100326EN-03.pdf pdf (0.45 Mo)
Technical Sheet
S000100326FR-03.pdf pdf (0.49 Mo)
1 document
Catalogue Commercial Page
ex223001_0996.pdf pdf (0.09 Mo)
1 document
PEP
LGRP-01405-V01.01-EN.PDF pdf (0.83 Mo)
