RJ45 field plug to be crimped Category 6 FTP

LCS³ LEGRAND

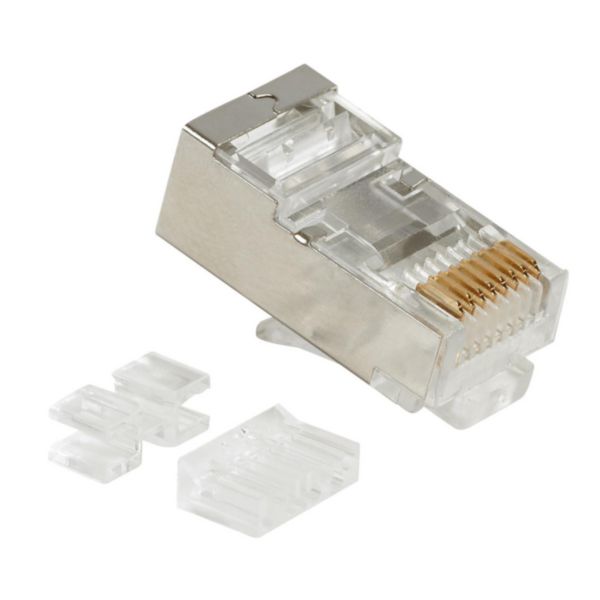

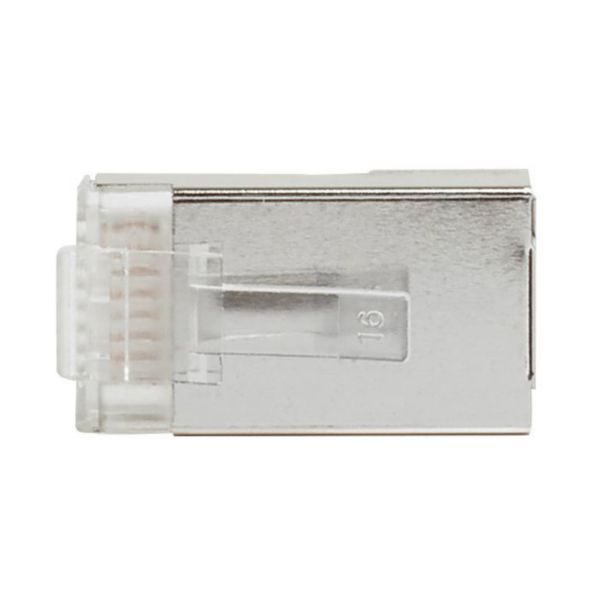

RJ45 field plug to be crimped Category 6 FTP

REF. 051711 EAN. 3414972093934

RJ plugs for RJ11, RJ12 and RJ45 sockets, 2 crimping zones, sleeve and conductor. RJ45 : modular jack 8P8C ( 8 positions and 8 electrical contacts) commonly used for Ethernet connections, and for telephone connectors.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ plugs for RJ11, RJ12 and RJ45 sockets, 2 crimping zones, sleeve and conductor. RJ45 : modular jack 8P8C ( 8 positions and 8 electrical contacts) commonly used for Ethernet connections, and for telephone connectors.

Product characteristics
  • Category 6 FTP : for up to 1 Gigabit per second data rate, shielded.
  • 0,5 µinch gold - plated contact
  • Fire resistance UL 94 V2
  • Compatible remote powering PoE up to 100W
  • Transparent polycarbonate body
Recommendation / Restriction
  • Inserting an uncrimped plug in an RJ socket risks damaging both the plug and socket contacts. When making a Category 5E or 6 connection, the minimum pairuntwisting distance should be kept between conductors. Use RJ crimping tool ref. 051709 to ensure good connection.

The product's benefits

Installation
  • Cabling standard : TIA 568A ans 568B
Usage
  • RJ45 plug can be covered with a white protective sleeve ref. 051706 or black ref. 051707

Technical characteristics

Model Plug
Type of connector RJ45 8(8)
Screened Yes
Category 6
Connection type Crimp
Special tool necessary Yes
Suitable for round cable Yes
Suitable for flat cable Yes
Suitable for litz wire conductor Yes
Suitable for solid conductors Yes
Colour Colourless
Min. AWG-size Other
Max. AWG-size Other
Width 11.68 mm
Height 1107 mm
Depth 22.8 mm
Operating / setting temperature -40-80 °C
Storage temperature -40-80 °C
Terminal marking indication No
Antimicrobial treatment No
Label space/information surface No
Mounting method Not applicable
Maximum Input cable diameter 6.5 mm
Entry membrane gland type Not applicable

Documentation

2 documents
Technical Sheet
S000100326EN-03.pdf pdf (0.45 Mo)
Technical Sheet
S000100326FR-03.pdf pdf (0.49 Mo)
1 document
Catalogue Commercial Page
ex223001_0996.pdf pdf (0.09 Mo)
1 document
PEP
LGRP-01405-V01.01-EN.PDF pdf (0.83 Mo)
