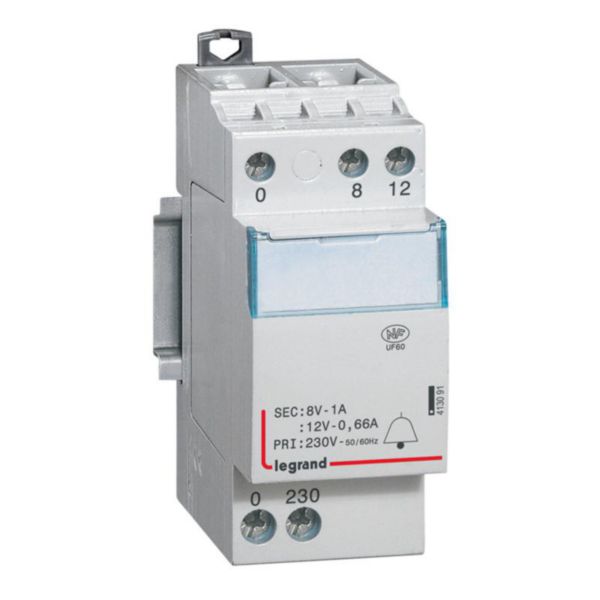

Name: Ringer transformer - 230 V / 12-8 V - 8 VA
SKU: 413091

Ringer transformer - 230 V / 12-8 V - 8 VA

LEGRAND

Ringer transformer - 230 V / 12-8 V - 8 VA

REF. 413091 EAN. 3245064130912

Compare You can only compare 4 products, you must remove 1 to add this one

Transformers, buzzers and bells
Bell transformers - Conform to IEC / EN 61558 - 2 - 8 - Protected against overloads and short circuits. - In the event of an overload, switch "OFF" the power supply and allow the transformer to cool down before switching on again - With label holders - Wall or rail mounting (for 4 modules ) - Possibility for supply busbars to run through (Cat.No 4 130 91)230 V/12 V - 8 V - Secondary : 12 / 8 V - Rating : 0,66/1 A - Power : 8 VA - Number of modules : 2

Primary voltage	230 V
Secondary voltage 1	12 V
Secondary voltage 2	8 V
Max. output power	8 W
Type of transformer	Standard bell ringing transformer
Surface mounting	Yes
Flush-mounted installation	Yes
Suitable for distribution board	Yes

Length	36 mm
Width	66 mm
Height	84 mm
Width in number of modular spacings	2
Short-circuit protected	Yes
Temperature protection	Yes
With on/off switch	No
