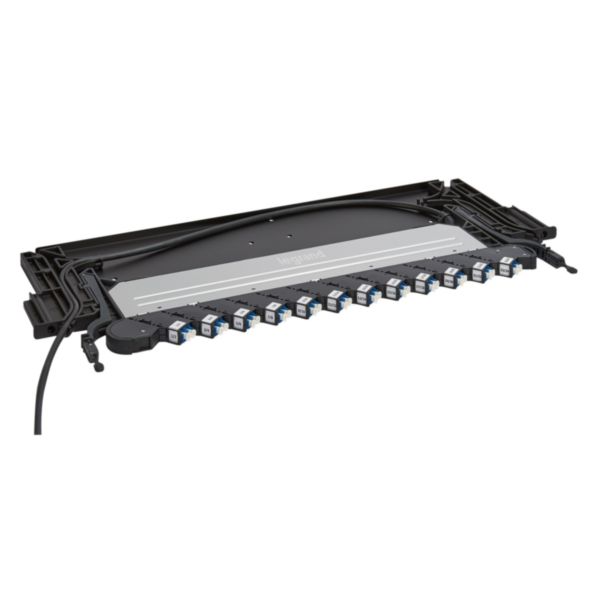

Right patch-open end cassette 24 fibers - single-mode - LC/PC

Name: Right patch-open end cassette 24 fibers - single-mode - LC/PC
SKU: C42002

LEGRAND

REF. C42002 EAN. 3414972356367

Compare You can only compare 4 products, you must remove 1 to add this one

24 fibers
Singlemode LC/PC
Right angled positioning adapters
Accessibility : each cassette can slide independently 40mm to the front in order to facilitate easy adds, moves and changes in critical high-density environments
Connector colour blue

Standard delivered with Shrink Sleeves. G.657A1 singlemode fibre. 48 x LC/PC or LC/APC duplex adapters. Conform IEC 61753, 61754 and 61755

The drawer is completely equipped. Everything is positioned and mounted in the drawer. The pigtails are stripped and inserted in the trays. The drawer is prepared for the termination of a max. of 96 fibres. The drawer is prepared to handle 4 separate cassettes of 24 fibres.

The positioning of the 19” mounting handles is adjustable. Minimum position is 55mm from the front of the drawer. Identification cassettes white with black overprint.

Category	OS2
Connection type front side	LC-Duplex
Number of connectors front side	12
Connection type backside	Other
Number of connectors rear side	0
Colour	Other
Crossed	No
Width	440 mm

Height	11 mm
Depth	223 mm
degree of impact strength (IK)	Not applicable
Degree of protection (IP)	Not applicable
Operating / setting temperature (Min-Max)	-20-70 °C
Storage temperature (Min-Max)	-20-70 °C
Halogen free	Yes
Label space/information surface	No
