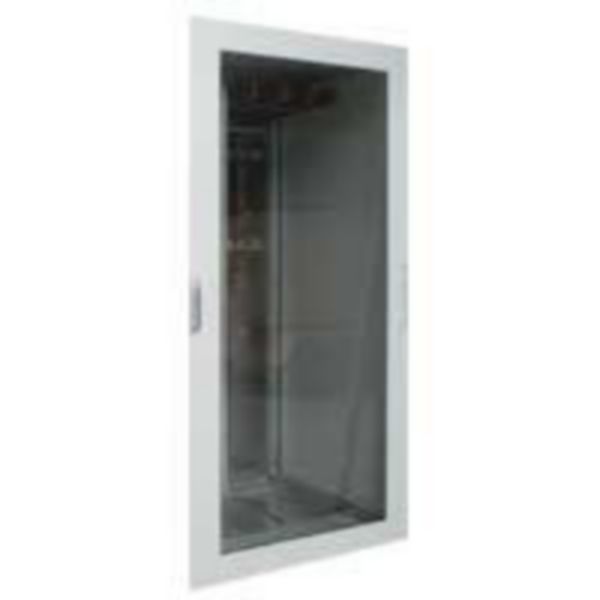

Name: Reversible flat glass door XL³ 4000 - width 975 mm
SKU: 020587

Reversible flat glass door XL³ 4000 - width 975 mm

LEGRAND

Reversible flat glass door XL³ 4000 - width 975 mm

REF. 020587 EAN. 3245060205874

Compare You can only compare 4 products, you must remove 1 to add this one

Distribution enclosures XL³ 4000 - IP 30 - IK 07 - IP 55 - IK 08 with door and sealing kit for use when joining enclosures - Consist of the combination of a "roof - base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004 - Height 2000 or 2200 mm. - Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975) - Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
Reversible doors - Supplied with handle - Interchangeable key barrels, to be ordered separately - For mounting on Front, rear or side Flat - glass - Width 975 mm - Height : 2000 mm

Model	Compartment door
Version as glazed door	Yes
Version as door for disconnecting switch interlocking	No
Width	1800 mm
Height	975 mm

2 documents

Select all

Instruction Use

F0996C-02.pdf pdf (0.37 Mo)

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0381.pdf pdf (0.46 Mo)

3 documents

Select all

Agreement

LOVAG-IT 13.045 (0.12 Mo)

Agreement

LOVAG-IT 12.017 (0.13 Mo)

Agreement

LOVAG-IT 12.019 (0.59 Mo)

Reversible flat glass door XL³ 4000 - width 975 mm
