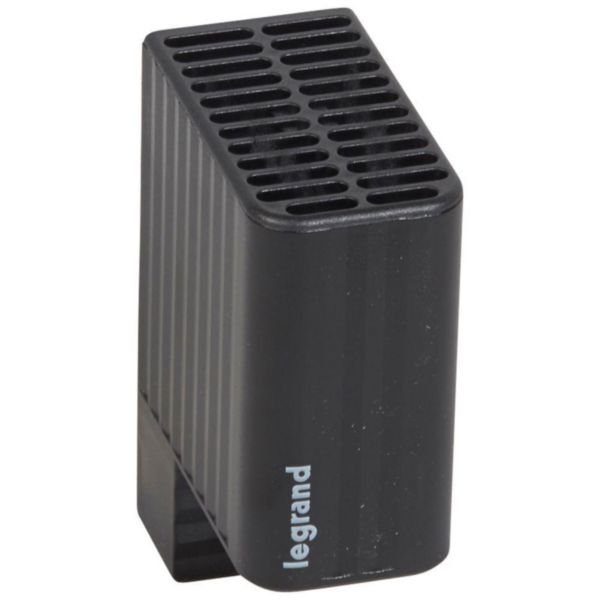

Resistance heater - for enclosure - 120/240 V~/= - 20 W

LEGRAND

Resistance heater - for enclosure - 120/240 V~/= - 20 W

REF. 035306 EAN. 3245060353063
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Protected against solid bodies larger than 12.5 mm No protection against ingress of water
Recommendation / Restriction
  • Recommended for industrial environments without any particular constraints.

The product's benefits

Usage
  • Allow the thermic management of the cabinet or the enclosure

Technical characteristics

Rated power 20 W
Operating voltage AC 50 Hz 120-240 V
Operating voltage AC 60 Hz 120-240 V
Operating voltage DC 120-240 V
Voltage type AC/DC
With fan No
With room temperature controller No
Continuous heating power at 10 °C 20 W
Width 38 mm
Height 98 mm
Depth 75 mm
Degree of protection (IP) IP20

Documentation

2 documents
Catalogue Technical Page
ex223001_0444.pdf pdf (0.12 Mo)
Catalogue Commercial Page
ex223001_0443.pdf pdf (0.1 Mo)
