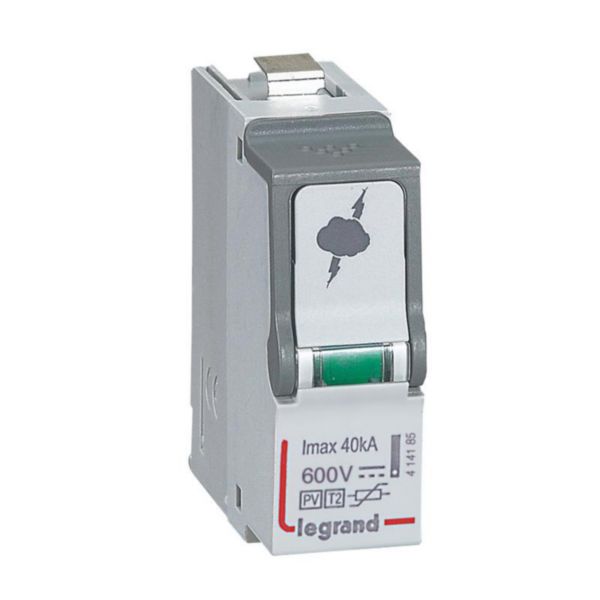

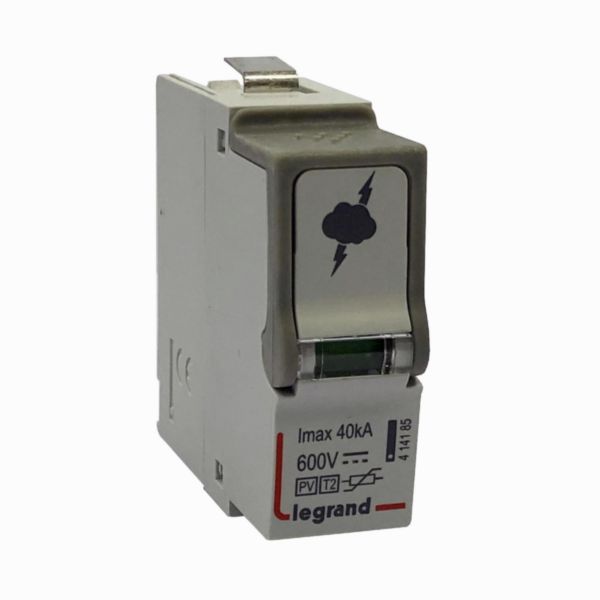

Replace module for PV VSP 414155

Name: Replace module for PV VSP 414155
SKU: 414185

LEGRAND

REF. 414185 EAN. 3414970806918

Compare You can only compare 4 products, you must remove 1 to add this one

System configuration DC	Yes
System configuration IT	No
System configuration TN	No
System configuration TN-C	No
System configuration TN-C-S	No
System configuration TN-S	No
System configuration TT	No
System configuration other	Yes
Number of conductors (without earthing)	1
Nominal discharge surge current In (8/20)	20 kA
Max. discharge surge current (8/20)	40 kA
Nominal voltage DC	600 V
Max. continuous voltage DC	720 V
Voltage protection level	2.5 kV
Integrated backup fuse	No
Mounting method	On basic element

Construction size	1 modular spacing
With remote signalling contact	No
Signalling at the device	None
Category type 2	Yes
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-25-60 °C
Storage temperature (Min-Max)	-25-60 °C
Electric supplying direction	By the top
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Push-in clamp , Other
Label space/information surface	No
