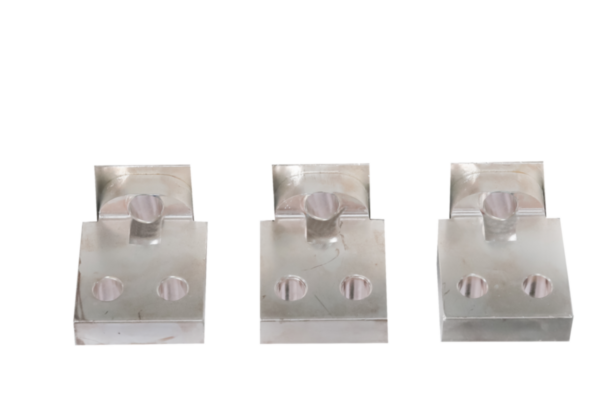

Rear terminals for DMX³ 1600 device, 3 poles in draw-out version

Name: Rear terminals for DMX³ 1600 device, 3 poles in draw-out version
SKU: 028147

DMX³ 1600 LEGRAND

REF. 028147 EAN. 3414971505353

Compare You can only compare 4 products, you must remove 1 to add this one

Device construction	Other
Integrated earth fault protection	No
Type of electrical connection of main circuit	Bolt connection
Suitable for DIN rail (top hat rail) mounting	No
DIN rail (top hat rail) mounting optional	No
With switched-off indicator	No
With integrated under voltage release	No
Number of poles	3
Position of connection for main current circuit	Back side
Complete device with protection unit	No
Motor drive integrated	No
Motor drive optional	No
Width	50 mm
Height	15 mm

Depth	63 mm
degree of impact strength (IK)	Not applicable
Operating / setting temperature (Min-Max)	-5-70 °C
Storage temperature (Min-Max)	-25-85 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the rear of the product
Terminal marking indication	No
Colour	Steel
Halogen free	Yes
Terminals capacity (Min-Max)	120-1000 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
Contains Batteries and/or Accumulator	No

2 documents

Select all

Instruction Use

LE11315AB.pdf pdf (5.3 Mo)

Workshop Book

Workshop Book: DMX³ 1600 pdf (24.18 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0214.pdf pdf (0.12 Mo)

1 document

Select all

3D Autocad

028147.dwg dwg (0.06 Mo)
