Rear terminals DPX³ 1600 - draw-out version - 3P

Name: Rear terminals DPX³ 1600 - draw-out version - 3P
SKU: 422588

LEGRAND

REF. 422588 EAN. 3414970384645

Compare You can only compare 4 products, you must remove 1 to add this one

DPX³ 1600 - equipment and Accessories

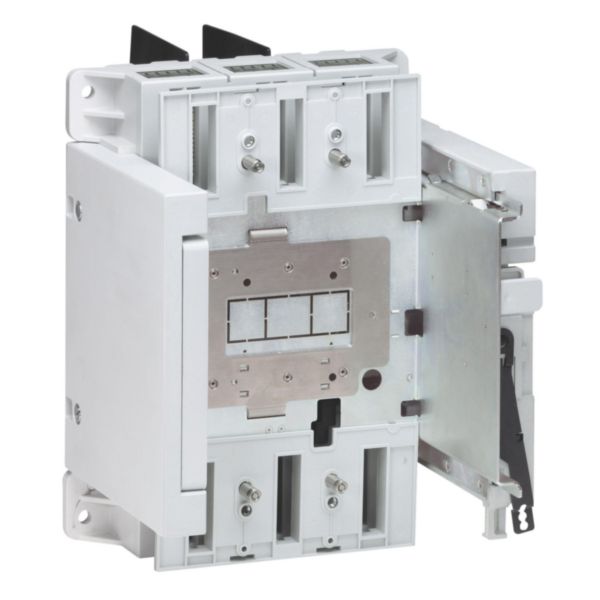

Draw - out version - A DPX³ draw - out version is a DPX³ fitted with draw - out base and a "Debro - lift" mechanism which can be used to withdraw the DPX³ while keeping it on its base Draw - out base - For DPX³ 1600 equipped with "Debro - lift" mechanism Cat.No 4 225 93 or 4 225 94 - 3P - Rear terminals

Version as busbar adaptor	Yes
Version as built-in device	Yes

Type of electrical connection of main circuit	Bolt connection

3 documents

Select all

Instruction Use

LE14152AA.pdf pdf (7.6 Mo)

Workshop Book

Workshop Book: DPX³ 125HP/160HP/250HP/630/1600 pdf (239.04 Mo)

Workshop Book

Cahier d'atelier : DPX³ 125HP/160HP/250HP/630/1600 pdf (239.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0183.pdf pdf (0.11 Mo)

1 document

Select all

3D Autocad

422588.dwg dwg (0.76 Mo)
