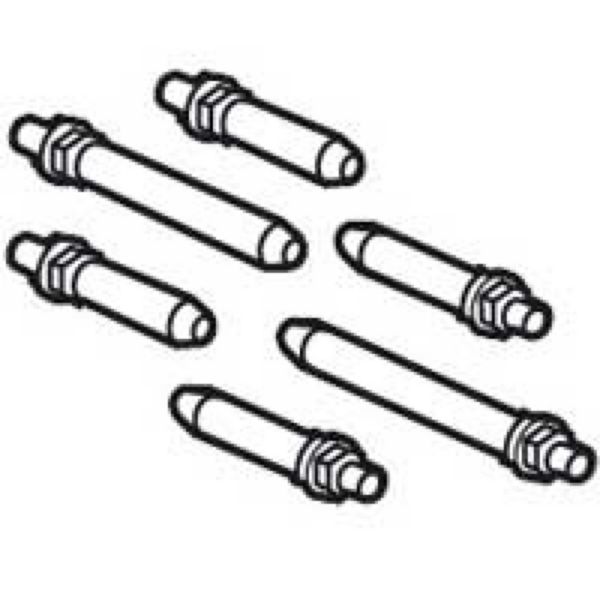

Name: Rear terminals (6) - for DPX 250 ER - up/downstream - 3P
SKU: 026510

Rear terminals (6) - for DPX 250 ER - up/downstream - 3P

LEGRAND

Rear terminals (6) - for DPX 250 ER - up/downstream - 3P

REF. 026510 EAN. 3245060265106

Compare You can only compare 4 products, you must remove 1 to add this one

DPX - IS 250 isolating switches - 63 to 250 A - Isolating switches for on - load circuit breaking by visible isolation and positive action of the contacts - Padlock integrated in the handle - Connection with cage terminals - Supplied with terminal shields - Conform to IEC 60947 - 3 - Category of use AC 23 A - Accept electrical auxiliaries - Can be mounted on rail or on plate in XL³ enclosures
Accessories Rear terminals - Used to convert the fixed version with front terminals to the fixed version with rear terminals - 3P - Set of upstream and downstream rear terminals

Max. rated operation current Ie	250 A
Suitable for round conductor connection	Yes
Suitable for sector conductor connection	No
Suitable for strip conductor connection	No

2 documents

Select all

Instruction Use

Y4188A.pdf pdf (0.36 Mo)

Instruction Use

LE04940AB.pdf pdf (1.98 Mo)

3 documents

Select all

Catalogue Commercial Page

ex223001_0248.pdf pdf (0.08 Mo)

Catalogue Technical Page

ex223001_0254.pdf pdf (0.03 Mo)

Catalogue Technical Page

ex223001_0249.pdf pdf (0.11 Mo)

1 document

Select all

3D Autocad

026510.dwg dwg (0.08 Mo)

Rear terminals (6) - for DPX 250 ER - up/downstream - 3P
