Ready to install kit Green'up Access - for residential and workplace use

Name: Ready to install kit Green'up Access - for residential and workplace use
SKU: 090470

LEGRAND

REF. 090470 EAN. 3414970336316

Compare You can only compare 4 products, you must remove 1 to add this one

Green'up Access ready to install kit - for electric vehicle charging

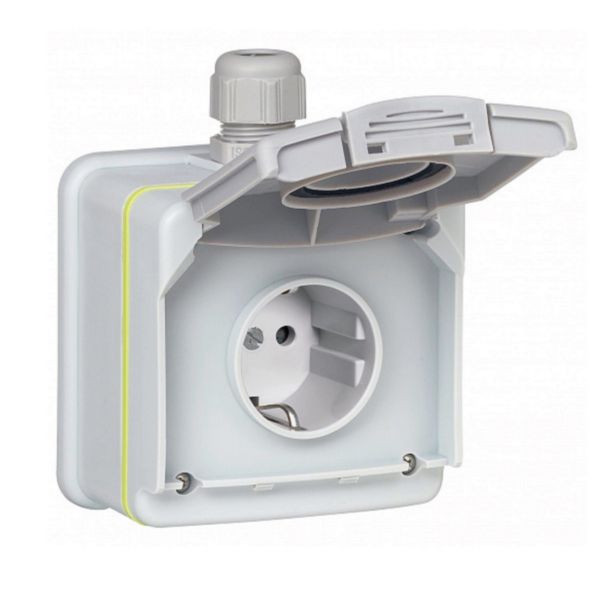

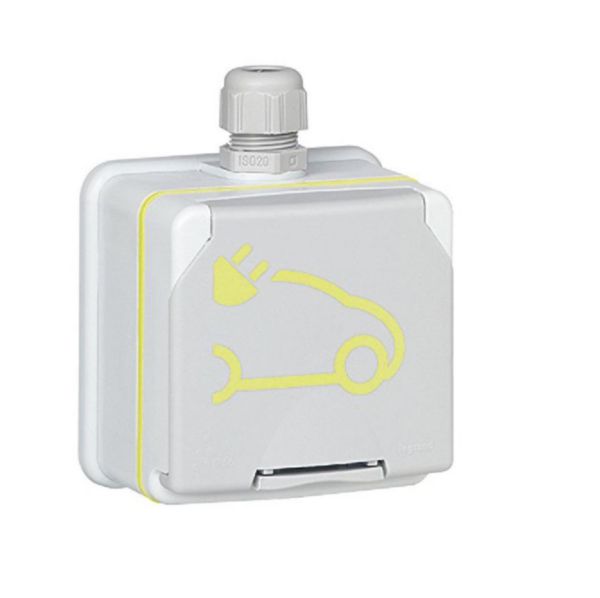

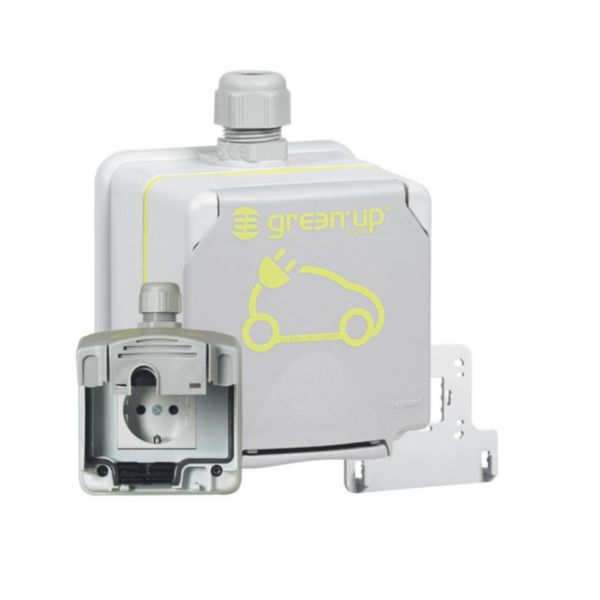

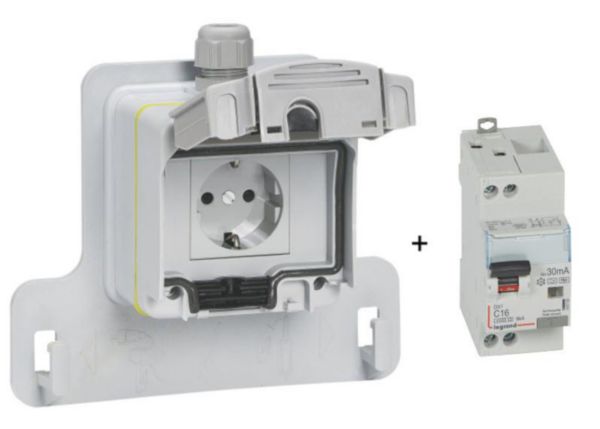

Ready to install kit - 16 A EV - Allows creating a safe infrastructure for electric and hybrid vehicle charging, using Mode 2 (or Mode 1) charging cables. - Suitable for residential and workplace use - Power supply directly from the electrical panel : - 1 dedicated line 3 x 2.5 mm² cable, protected with one RCBO (one line per socket) - The kit contains : - 1 heavy duty German standard Green'up Access plastic socket, with flap cover, IP 55 - IK 08 - 16 A - 230 V - 16 A EV, 6 mm² screw terminals, according to IEC 60884 - 1, NF C 61 - 314, VDE 620 - 1 - 1 base for hanging up the vehicle charging cable control box - 1 RCBO 16 A, C curve, 30 mA, F type Cat.No 4 107 53 - The use of a surge protective device is recommended - Recommended installation height : between 0,80 and 1.20 m from the floor

Number of communication contacts	0
Length of the fixed connection cable	0 m
LED integrated	No
Contact material	CuZn
Surface treatment contacts	Silver-plated
degree of impact strength (IK)	IK08
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-25-70 °C
Colour	Grey
Terminals capacity (Min-Max)	1.5-4 mm²
