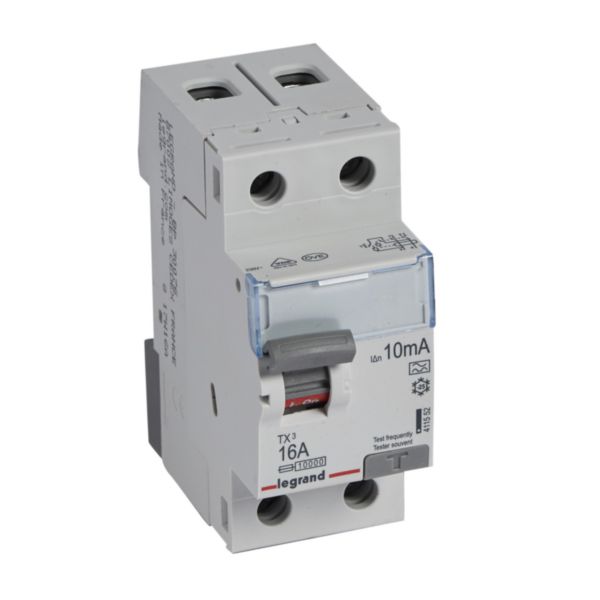

RCCB TX³ - 2P 230 V~ - 10 mA - 16 A - A type

Name: RCCB TX³ - 2P 230 V~ - 10 mA - 16 A - A type
SKU: 411552

LEGRAND

REF. 411552 EAN. 3414970352705

Rated current :

Rated fault current :

0.01

0.03

0.1

0.3

Leakage current type :

Compare You can only compare 4 products, you must remove 1 to add this one

RCCBs TX³ residual current circuit breakers - from 16 A to 80 A - AC and A types - Conform to IEC 61008 - 1 - Compatible with prong - type and fork type supply busbars - AC type : detect AC component faults - A type : detect AC and DC component faults
2-pole - 230 V~A type - Sensitivity : 10 mA - In : 16 A - Number of modules : 2

Technical characteristics

Number of poles	2
Rated voltage	230 V
Rated current	16 A
Rated fault current	0.01 A
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	4 kV
Mounting method	DIN rail
Leakage current type	A
Selective protection	No
Short-time delayed tripping	No
Short-circuit breaking capacity (Icw)	10 kA
Surge current capacity	0.25 kA
Voltage type	AC
With interlocking device	Yes
Frequency	50 Hz
Additional equipment possible	Yes
Degree of protection (IP)	IP20
Width in number of modular spacings	2
Built-in depth	44 mm

Ambient temperature during operating (Min-Max)	-25-60 °C
Pollution degree	2
Connectable conductor cross section multi-wired (Min-Max)	0.75-35 mm²
Connectable conductor cross section solid-core (Min-Max)	0.75-50 mm²
Colour	Grey
RAL-number (similar)	7035
Explosion-proof	No
Width	35.6 mm
Height	88.9 mm
Depth	77.8 mm
degree of impact strength (IK)	IK04
Storage temperature (Min-Max)	-40-70 °C
Nominal voltage (Min-Max)	110-250 V
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Stress test conformity (1000V)	Yes
Halogen free	Yes
Connection type	Screwed terminal , Busbar and cable
Label space/information surface	Yes

Product carbon footprint

1.534

Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
