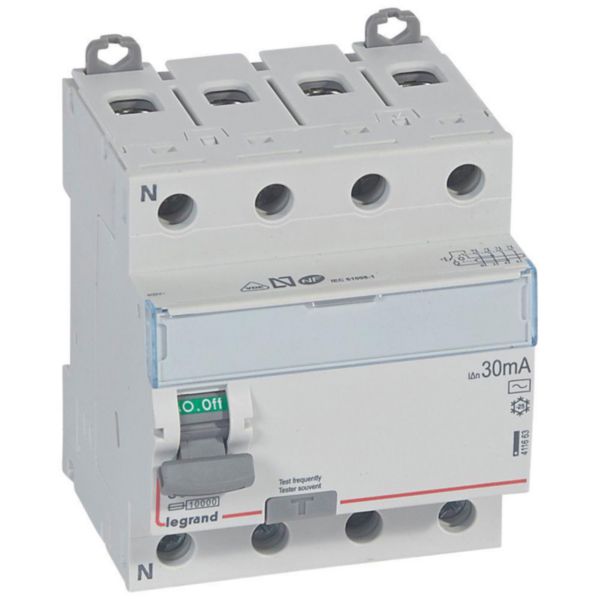

RCCB DX³ 4P 80A 30mA AC

DX³ LEGRAND

RCCB DX³ 4P 80A 30mA AC

REF. 411663 EAN. 3245064116633

Protects persons against direct and indirect contacts, and electric shock hazard. Provides protection against fire hazards due to a persistent earth fault current. Can also be used to control and isolate the installation.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Protects persons against direct and indirect contacts, and electric shock hazard. Provides protection against fire hazards due to a persistent earth fault current. Can also be used to control and isolate the installation.

Product characteristics
  • Screw terminals top side for supply by cables.Load connection bottom side by screw terminals for cables.
  • AC-type for the detection of AC residual currents.
  • Width = 4 modules
  • Fitted with a test button, to be used frequently to check the tripping of the residual current function.This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.
Recommendation / Restriction
  • This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.Before carrying out the installation, read the instructions and take account of the product's specific mounting location.Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.Use only Legrand brand accessories.

The product's benefits

Installation
  • Fitted with DIN rail clamps, on top side and on bottom side to facilitate the installation on the DIN rail.
Usage
  • Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.On and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the RCCB

Technical characteristics

Number of poles 4
Rated voltage 400 V
Rated current 80 A
Rated fault current 0.03 A
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 4 kV
Mounting method DIN rail
Leakage current type AC
Selective protection No
Short-time delayed tripping No
Short-circuit breaking capacity (Icw) 10 kA
Surge current capacity 0.25 kA
Voltage type AC
With interlocking device Yes
Frequency 50 Hz
Additional equipment possible Yes
Degree of protection (IP) IP20
Width in number of modular spacings 4
Built-in depth 44 mm
Ambient temperature during operating (Min-Max) -25-60 °C
Pollution degree 2
Connectable conductor cross section multi-wired (Min-Max) 0.75-35 mm²
Connectable conductor cross section solid-core (Min-Max) 0.75-50 mm²
Colour Grey
RAL-number (similar) 7035
Explosion-proof No
Width 71.2 mm
Height 83 mm
Depth 77.8 mm
degree of impact strength (IK) IK04
Storage temperature (Min-Max) -40-70 °C
Nominal voltage (Min-Max) 320-440 V
Electric supplying direction By the top or bottom
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Halogen free Yes
Connection type Screwed terminal , Busbar and cable
Label space/information surface Yes
