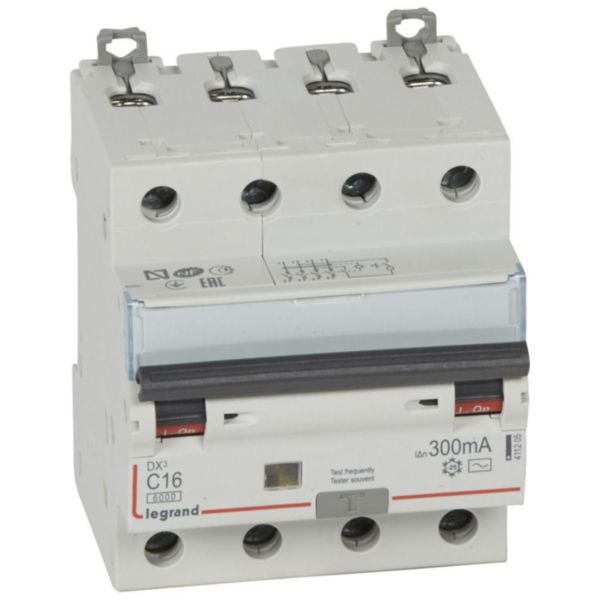

Name: RCBO DX³ 6000A 4 poles 16A curve C type AC 300mA
SKU: 411205

RCBO DX³ 6000A 4 poles 16A curve C type AC 300mA

REF. 411205 EAN. 3245064112055

DX³ four-pole modular monobloc residual current circuit breaker for control, protection, and isolation of 400V circuits. It combines 16A C-curve overcurrent protection with 300mA AC-type earth leakage detection and 6000A breaking capacity.

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

Breaking capacity 6000A according to IEC60898 - 1 standard. Tripping Curve C. Sensibility 300mA Type AC.
AC - type for the detection of AC residual currents.
Can be supplied either by wire prong busbar (top side) or Legrand HX3 plug busbar (top side).
Width = 4 modules. Can be fitted with DX3 auxiliaries.
Fitted with a test button, to be used frequently to check the tripping of the residual current function.This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.

Recommendation / Restriction

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories

The product's benefits

Installation

Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.

Usage

Fitted with a label holder allowing a clear, visible and convenient identification of the circuit. On and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the rcbo.

Technical characteristics

Number of poles (total)	4
Number of protected poles	4
Rated voltage	400 V
Rated current	16 A
Rated fault current	0.3 A
Leakage current type	AC
Current limiting class	3
Rated short-circuit breaking capacity according to EN 61009	6 kA
Rated short-circuit breaking capacity according to IEC 60947-2	6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	6 kA
Surge current capacity	0.25 kA

Voltage type	AC
Frequency	50 Hz
Release characteristic	C
Concurrently switching neutral conductor	Yes
With interlocking device	Yes
Pollution degree	2
Width in number of modular spacings	4
Built-in depth	44 mm
Anti-nuisance tripping version	No
Degree of protection (IP)	IP20
