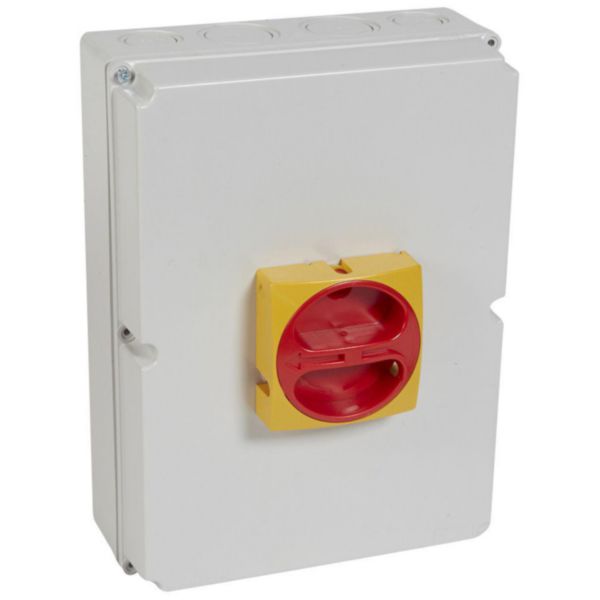

Name: Proximity switch - 4 poles with left neutral - 80A
SKU: 022187

Proximity switch - 4 poles with left neutral - 80A

- LEGRAND

Proximity switch - 4 poles with left neutral - 80A

REF. 022187 EAN. 3245060221874

Compare You can only compare 4 products, you must remove 1 to add this one

Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	Yes
Version as emergency stop installation	No
Version as reversing switch	No
Max. rated operation voltage Ue AC	690 V
Rated operating voltage	690-690 V
Rated permanent current Iu	80 A
Rated permanent current at AC-21, 400 V	80 A
Rated operation power at AC-3, 400 V	22 kW
Rated short-time withstand current lcw	1.5 kA
Rated operation power at AC-23, 400 V	30 kW
Switching power at 400 V	32 kW
Conditioned rated short-circuit current Iq	10 kA
Number of poles	4

Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as change-over contact	0
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	No
Device construction	Complete device in housing
Suitable for floor mounting	Yes
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Colour control element	Red
Type of control element	Short thumb-grip
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP65
