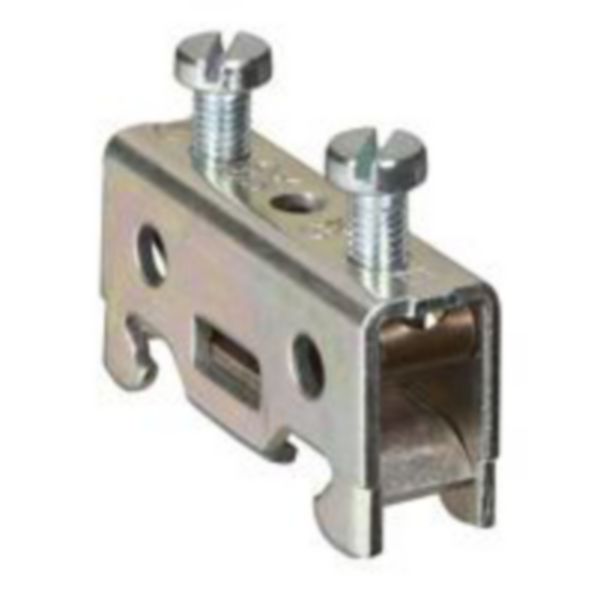

Protection conductor terminal block, screw connection, 1 connection 1entry/1outlet, Cross-section 35mm² - green/yellow

Name: Protection conductor terminal block, screw connection, 1 connection 1entry/1outlet, Cross-section 35mm² - green/yellow
SKU: 037176

Viking 3 LEGRAND

REF. 037176 EAN. 3245060371760

Compare You can only compare 4 products, you must remove 1 to add this one

Green/yellow terminal blocks are recommended for protection conductors.
2 areas for automatic insertion bridging combs up to 8mm pitch (upper level only for multi-level terminal blocks)
Easy insertion of conductors thanks to the ergonomic shape of the entry and outlet.

Installation recommended for electrical connection in industrial and tertiary cabinets and enclosures.

A securing pin on the insulating body holds the Viking 3 terminal blocks together for ease of handling and perfect alignment on the rail. The assembly/disassembly of a terminal block is still possible without removing the adjacent terminal blocks

Terminal blocks have two marking zones per level allowing a clear, visible and convenient identification of the circuit. Compatible with CAB 3 marking systems.

Connectable conductor cross section fine-strand without cable end sleeve	2.5-50 mm²
Connectable conductor cross section fine-strand with cable end sleeve	4-35 mm²
Connectable conductor cross section solid-core	2.5-50 mm²
Connectable conductor cross section multi-wired	4-35 mm²
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Mounting method	DIN rail (top hat rail) 35 mm
Material insulation body	Thermoplastic

Operating temperature	-5-40 °C
Width	15 mm
Height	41.5 mm
Depth	50.5 mm
Explosion-tested version 'Ex e'	No
Closing plate required	Yes
Colour	Other
Internally connected stages	No
Inflammability class of insulation material according to UL 94	V2
