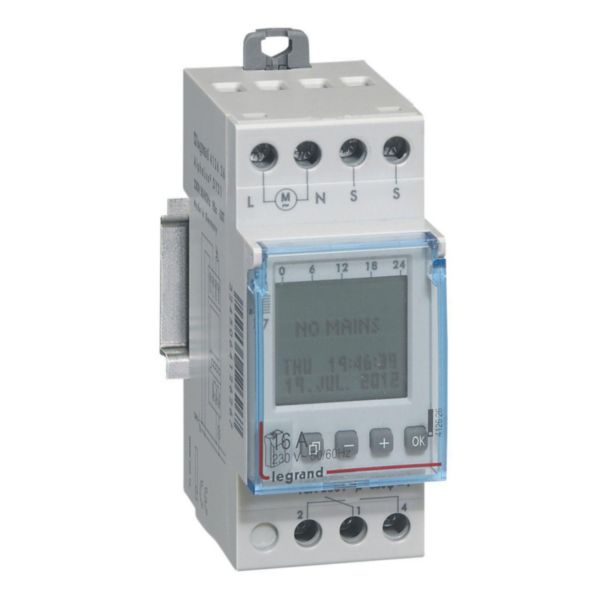

Programmable twilight switch 1 output 16A 250V with photocell supplied - 2 modules

Name: Programmable twilight switch 1 output 16A 250V with photocell supplied - 2 modules
SKU: 412626

LEGRAND

REF. 412626 EAN. 3245064126267

Modular twilight switch, for distribution board, allowing a lighting circuit to be switched on and off depending on the brightness (dusk, sunrise)

Compare You can only compare 4 products, you must remove 1 to add this one

Modular twilight switch, for distribution board, allowing a lighting circuit to be switched on and off depending on the brightness (dusk, sunrise)

Light sensitive switches - Can be used to switch a lighting circuit "ON" and "OFF" based on light conditions (nightfall, daybreak) - Supplied with IP 65 weatherproof photoelectric cell - Power supply : 230 V~ - 50/60 Hz
Programmable - 56 programmes possible : daily, weekly or yearly programmes - Output 16 A - 250 V~ - cos Ï = 1 - 2000 W incandescent - 2000 VA series compensated fluorescent - 1000 W energy - saving bulb - Integrated hour counter - High precision clock : + 0,1 sec per day at 25°C - Working reserve : 5 years - Adjustable from 3 to 100 000 lux - Automatic changeover between summer/winter time - Number of modules : 2 - Programmed directly on keypad, or using programme transfer key Cat.No 4 128 72 - Supplied with IP 65 photoelectric cell Cat.No 4 128 60

Rated voltage	230 V
Rated frequency	50-60 Hz
Max. incandescent lamp load	2000 W
Max. load fluorescent lamp	2000 VA
Max. load fluorescent lamp (parallel compensated)	600 VA
Max. switching current (cos phi = 0.6)	10 A
Adjustment range brightness value	1-100000 lx
With programmable overnight shutoff	Yes

Push button input	No
Max. conductor length light sensor	50 m
Protection class light sensor	II
Mounting method light sensor	Wall surface mounted
Mounting method	DIN rail
Width in number of modular spacings	2
Degree of protection (IP)	IP20
Degree of protection (IP) light sensor	IP65
