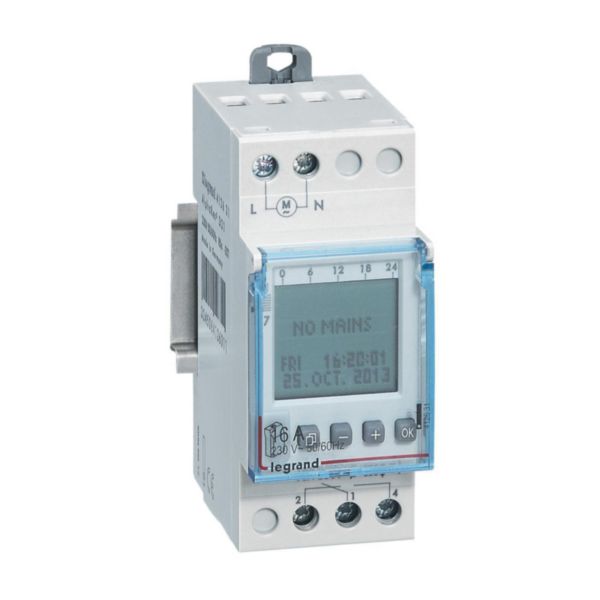

Programmable time switch digital display -230V~ -multifunction 56 prog. -1 output

LEGRAND

Programmable time switch digital display -230V~ -multifunction 56 prog. -1 output

REF. 412631 EAN. 3245064126311
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Mounting method DIN rail
Number of channels 1
Supply voltage 230-230 V
Voltage type (supply voltage) AC
Frequency supply voltage 50-60 Hz
Autonomy in years 5
Accuracy per day 0.1 s
Text guidance in display Yes
External programming Yes
With memory card No
60 min program No
24 h program Yes
Weekly program Yes
Annual program No
Holiday program Yes
Impulse program No
Cycle program Yes
Astro program No
Random program Yes
Hour meter Yes
Mains synchronous Yes
Quartz controlled Yes
Radio-controlled No
Radio-controlled (DCF77) No
GPS (global positioning system) No
Contact type Change-over contact (NO/NC)
Shortest switching time channel 1 0.01666 min
Number of memory locations 56
Automatic switching summer-/winter time Yes
Suitable for manual operation Yes
External pushbutton input No
Switching preselection Yes
Nominal switching current at 250 V AC 16 A
Potential free switch contact Yes
Degree of protection (IP) IP20
Width in number of modular spacings 2
Width 35.6 mm
Height 83 mm
Depth 67 mm
Operating / setting temperature -20-55 °C
Storage temperature -20-60 °C
Electric supplying direction By the top
Terminal marking indication Yes
Colour Grey
RAL-number 7035
Halogen free Yes
Connection type Screwed terminal , Cable
Terminals capacity 1.5-4 mm²
Label space/information surface No
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2477
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 11 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object No
Application store for download Not applicable

Documentation

2 documents
Instruction Use
292555GB-03.pdf pdf (1.1 Mo)
Instruction Use
292555FR-03.pdf pdf (1.15 Mo)
2 documents
Catalogue Commercial Page
ex223001_0100.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_0101.pdf pdf (0.09 Mo)
1 document
3D Autocad
412721.dwg dwg (0.11 Mo)
1 document
PEP
LGRP-00527-V01.01-EN.pdf pdf (0.63 Mo)
