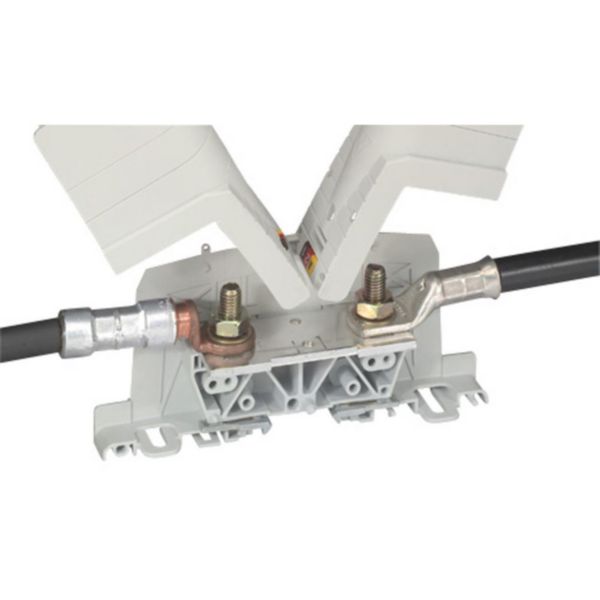

Power terminal block Viking 3 - cable lug-cable lug - pitch 42

Name: Power terminal block Viking 3 - cable lug-cable lug - pitch 42
SKU: 039014

Viking 3 LEGRAND

REF. 039014 EAN. 3245060390143

Compare You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Connectable conductor cross section fine-strand without cable end sleeve (Min-Max)	150-150 mm²
Rated current In	415 A
Rated voltage	1000 V
Type of electrical connection 1	Bolt connection
Type of electrical connection 2	Bolt connection
Number of levels	1
Number of clamp positions per level	1
Internally connected stages	No
Mounting method	DIN rail (top hat rail) 35 mm
Material insulation body	Thermoplastic

Operating temperature (Min-Max)	-5-40 °C
Width	42 mm
Height	89.5 mm
Depth	296 mm
Closing plate required	No
Colour	Grey
Type of slitting	Swivelling
With integrated test socket	Yes
Inflammability class of insulation material according to UL 94	V2
