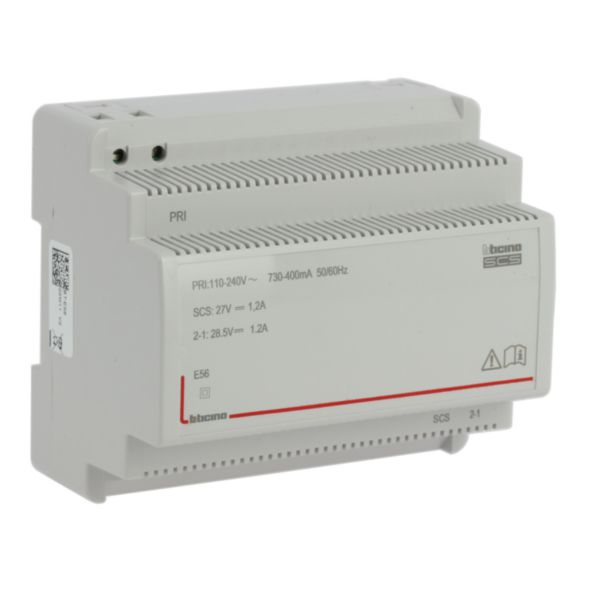

Power Supply BUS SCS 6MOD 1.2 A 110-240 V

My Home Up BTICINO

Power Supply BUS SCS 6MOD 1.2 A 110-240 V

REF. BT-E56 EAN. 8005543693629
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 6DIN modules
  • 1,2 A
  • 110 - 240 Va.c.

The product's benefits

Installation
  • For flush mounted or wall mounted switchboards
Usage
  • For flush mounted or wall mounted switchboards

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system KNX Secure No
Bus system KNX Secure-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 6
Width 105 mm
Height 90 mm
Depth 65 mm
With LED indication No
Number of integrated choke coils 1
Number of lines to feed 1
Max. output current 1200 mA
Secondary voltage 27 V
Degree of protection (IP) IP20
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -10-55 °C
Storage temperature (Min-Max) -25-70 °C
Voltage type AC/DC
Nominal voltage (Min-Max) 110-240 V
Supply current (Min-Max) 0.4-0.73 A
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Colour Grey
Halogen free Yes
Connection type Screwed terminal
Connected object No

Documentation

3 documents
Technical Guide
LE04498AL_FR.pdf pdf (127.23 Mo)
Technical Guide
LE04498AL_EN.pdf pdf (112.86 Mo)
Instruction Use
LE12932AA.pdf pdf (3.19 Mo)
2 documents
Catalogue Commercial Page
ex223001_1212.pdf pdf (0.14 Mo)
Catalogue Technical Page
ex223001_0646.pdf pdf (0.04 Mo)
1 document
Agreement
NZ SDoC-L-0680-04A (0.27 Mo)
