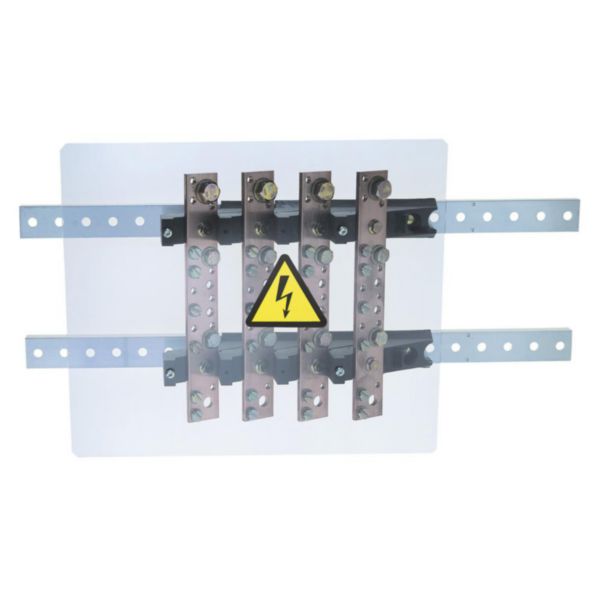

Power distribution block - stepped for lugs - 400 A - 4 bars 32 x 5 mm

LEGRAND

Power distribution block - stepped for lugs - 400 A - 4 bars 32 x 5 mm

REF. 037442 EAN. 3245060374426
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Power distribution blocks - "Standard" distribution - Supplied with screen protection
  • Stepped for lugs 400 A - Fixing on rail EN 60715 symmetrical, with claws Cat.No 0 374 39 - Distribution block consisting of 4 bars 32 x 5 mm - Composition of each bar : - 2 x 10,5 mm untapped holes for power supply (185 mm² max.) - 15 outgoing M6 holes, 4 outgoing M8 holes

Technical characteristics

Number of connection clamps 21
Max. conductor cross section 185 mm²
Length 523 mm
Width 280 mm
Depth 103 mm
Mounting method Surface mounted
Number of inlets 21
Type of inlet Cable
Material Plastic
Colour Black
Degree of protection (IP) Other
With cover Yes
Cover attachment Screwed
With transparent cover Yes
Rated insulation voltage Ui 1000 V
Operating / setting temperature -5-40 °C
Explosion-tested version No
For Ex-zone gas None
For Ex-zone dust None
