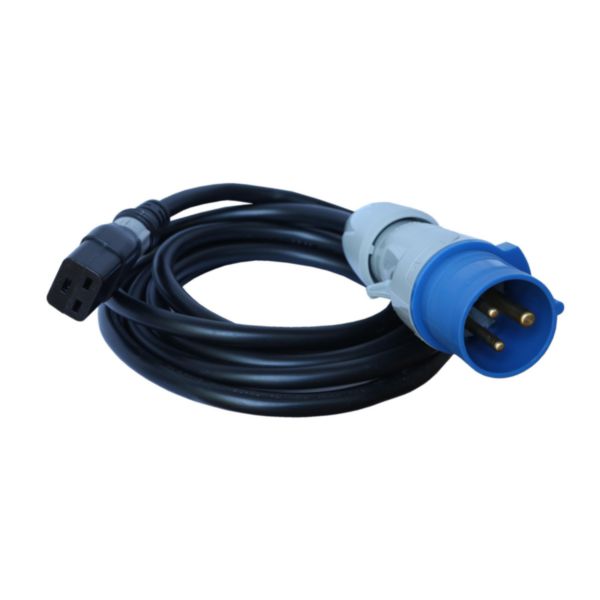

Power cable IEC 60320 C19 to IEC 60309 16A 2P+E plug, 1.5 meter

Linkeo LEGRAND

Power cable IEC 60320 C19 to IEC 60309 16A 2P+E plug, 1.5 meter

REF. 646905 EAN. 3414972338516
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Connector - End 1 : C19 - IEC60320 1P+N+E with rotary locking mechanism
  • Connector - End 2 : Plug IEC60309 16A 1P+N+E
  • Black cable
  • 1,5 meter length

The product's benefits

Usage
  • Rotary locking mechanism on C19 plug that fits any standard C20 inlet to avoid accidental disconnection. Locking retention force : 100N.

Technical characteristics

Connection 1 CEE plug (IEC 60309)
Connection type according to IEC 60320, connection 1 C16A
Cable entry connection 1 Straight
Connection 2 Device connector (IEC 60320)
Connection type according to IEC 60320, connection 2 C19
Cable entry connection 2 Straight
System-oriented connector system No
Number of cores 3
Nominal cross section conductor 2.5 mm²
Length 1.5 m
Material outer sheath Polyvinyl chloride (PVC)
Temperature resistance (Min-Max) -20-70 °C
Nominal current 16 A
Nominal voltage (Min-Max) 0-250 V
Frequency (Min-Max) 50-60 Hz
Colour outer sheath Black
Spiralized cable No
With protective conductor Yes
With personal protection PRCD No
Degree of protection (IP) IP44
With cord switch No
Outer diameter approximate 10 mm
degree of impact strength (IK) IK09
Halogen free Yes

Documentation

2 documents
Technical Sheet
FT-646905-06EN-00.pdf pdf (0.06 Mo)
Technical Sheet
FT-646905-06FR-00.pdf pdf (0.06 Mo)
1 document
Catalogue Commercial Page
ex223001_1041.pdf pdf (0.09 Mo)
