Name: Plug-in replacement modules for self-protected SPD - Cat.Nos 0 039 51/53
SKU: 003954

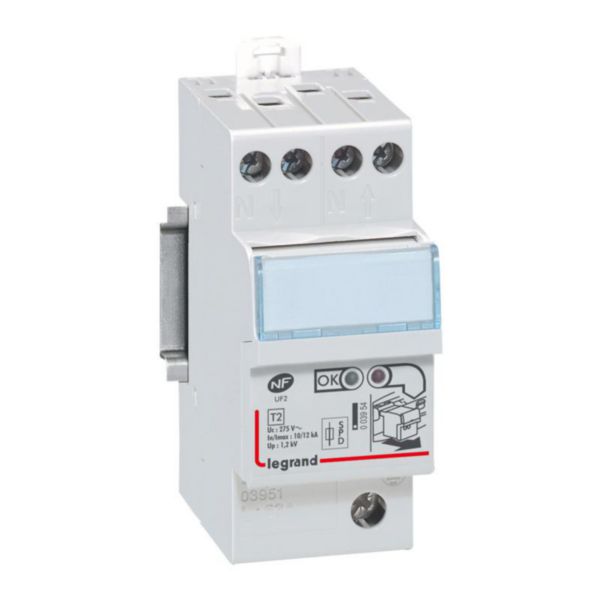

Plug-in replacement modules for self-protected SPD - Cat.Nos 0 039 51/53

LEGRAND

Plug-in replacement modules for self-protected SPD - Cat.Nos 0 039 51/53

REF. 003954 EAN. 3245060039547

Compare You can only compare 4 products, you must remove 1 to add this one

Class II (T2) low voltage SPDs with integrated protection - SPDs with integrated protection against overload currents and short - circuit currents - SPDs compliant with EN/IEC 61643 - 11 standards - For 230/400 VA power networks (50/60 Hz)
Replacement plug - in modules For self protected SPDs - For self protected SPDs Cat.Nos 0 039 51/53

System configuration IT	No
System configuration TN	Yes
System configuration TN-C	Yes
System configuration TN-C-S	Yes
System configuration TN-S	No
System configuration TT	No
System configuration other	Yes
Nominal discharge surge current In (8/20)	10 kA
Nominal voltage AC	230 V
Max. continuous voltage AC	275 V
Voltage protection level	1.2 kV
Integrated backup fuse	No
Construction size	1 modular spacing
With remote signalling contact	No
Signalling at the device	Optical
Category type 2	Yes
Degree of protection (IP)	IP20

Width	35.6 mm
Height	44 mm
Depth	54.5 mm
degree of impact strength (IK)	IK05
Operating / setting temperature (Min-Max)	-10-40 °C
Storage temperature (Min-Max)	-20-70 °C
Nominal voltage (Min-Max)	220-230 V
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the top
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	No
Connection type	Not applicable , Cable
Terminals capacity (Min-Max)	6-6 mm²
Label space/information surface	Yes
