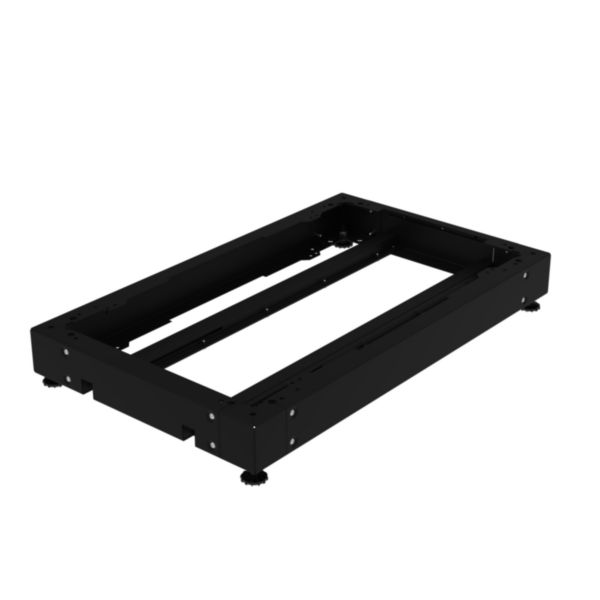

Plinth width 600mm depth 1000mm

Linkeo LEGRAND

Plinth width 600mm depth 1000mm

REF. 446870 EAN. 3414972027526
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • For cabinets with 600mm width and 1000mm depth
  • Galvanised sheet metal
  • Equipped with 4 levelling feet to adjust the plinth from the floor
  • Black RAL 9005
Recommendation / Restriction
  • Useful to raise the cabinet, so that the cables can be fed into the entry from below, particularly when there is no raised floor. It can be used to store extra length of cable, or route the cables through 2 linked cabinets. Also, it protects the cabinet base from dirt and humidity. To be installed on cabinets with a width of 600mm and a depth of 1000mm (ref. 446800, 446804, 446820 and 446824)

The product's benefits

Installation
  • Supplied with complete set of screws for the equipotential link with the cabinet. Can be fixed to the floor (screws not supplied).
Usage
  • Possibility to place 2 plinths one on top of the other.
Avantages
  • Uniformity of the structure : the plinths are the same colour as the cabinets

Technical characteristics

Model Base complete
Material Steel
Colour Black
RAL-number (similar) 9005
Degree of impact strength (IK) IK02
Max. load capacity 1500 kg
Suitable for enclosure building width 600 mm
Suitable for enclosure building depth 1000 mm
Suitable for aeration/de-aeration No
Suitable for cable patch Yes
Suitable for outdoor set-up No
Width 600 mm
Height 100 mm
Depth 1000 mm
Operating / setting temperature -25-70 °C
RAL-number 9005
Halogen free Yes
