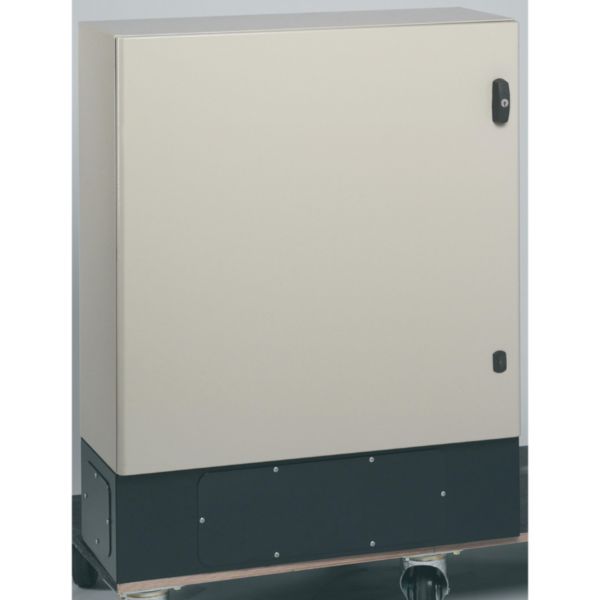

Plinth for Atlantic E cabinet - 600x300 - RAL 7016

Name: Plinth for Atlantic E cabinet - 600x300 - RAL 7016
SKU: 036300

LEGRAND

REF. 036300 EAN. 3245060363000

Compare You can only compare 4 products, you must remove 1 to add this one

Atlantic metal cabinets supplied with plain plate - IP 55/IP 66 - IK 10 - Type 4x - Type 12- IP 66 according to standards IEC EN 60529 for 1-door cabinets - IP 55 according to standards IEC EN 60529 for 2-door cabinets- IK 10 according to standards IEC EN 62262- LCIE 17 07 90 10A- Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas- EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us)- Excellent resistance to corrosion and chemical agents- 80 Î¼m thick textured polyester coating. Anti-corrosion treatment for hinges and pins- Reversible door - Fitted with lever- Supplied with double bar lock - Self-centering positioning system for the equipment- Compatible with all Atlantic accessories Low cable entries RAL 7035 - Optional depth adjustement for cabinets 400 mm depth, with slide rails Cat.No 0 367 45
Plinths RAL 7016- Height 200 mm- Front and rear trap door - For cabinets Width : 600 mm- For cabinets Depth : 300 mm- Weight : 6 kg

Model	Base complete
Material	Steel
Colour	Black
RAL-number (similar)	7016
Suitable for enclosure building width	600 mm
Suitable for enclosure building depth	300 mm

Suitable for aeration/de-aeration	No
Suitable for cable patch	Yes
Width	600 mm
Height	200 mm
Depth	280 mm
RAL-number	7016

1 document

Select all

Instruction Use

041401-01.pdf pdf (0.32 Mo)

2 documents

Select all

Catalogue Technical Page

ex223001_0420-0421.pdf pdf (0.28 Mo)

Catalogue Commercial Page

ex223001_0416.pdf pdf (0.06 Mo)

1 document

Select all

3D Autocad

036300.dwg dwg (0.04 Mo)
