Plexo™ - Surface mounting box IP 55 - for 20 A sockets 557 03/06/08

Plexo™ LEGRAND

Plexo™ - Surface mounting box IP 55 - for 20 A sockets 557 03/06/08

REF. 090359 EAN. 3245060903596
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics

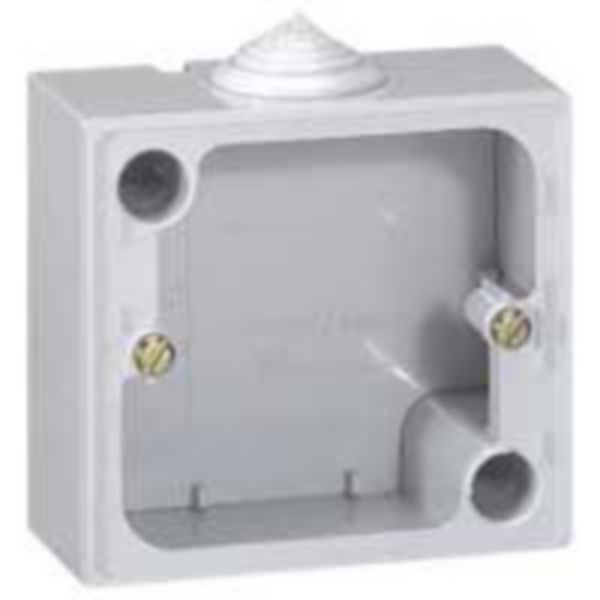

  • Surface - mounting box - Surface - mounting box for 20 A sockets Cat.Nos 0 557 03/06/08 - Dimensions : 79 x 86 x 40 mm

Technical characteristics

Number of socket outlets 1
Assembly arrangement Surface mounted frame
Suitable for modular domestic switching devices No
Number of modules (module system) 1
Number of units 1
Mounting direction Horizontal
Shape Square
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour Grey
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry Yes
Shock resistant Yes
Degree of protection (IP) IP2X
Width 86 mm
Height 79 mm
Depth 40 mm
degree of impact strength (IK) IK02
Operating / setting temperature -20-40 °C
Storage temperature -20-40 °C

Documentation

1 document
Catalogue Commercial Page
ex223001_0791.pdf pdf (0.88 Mo)
