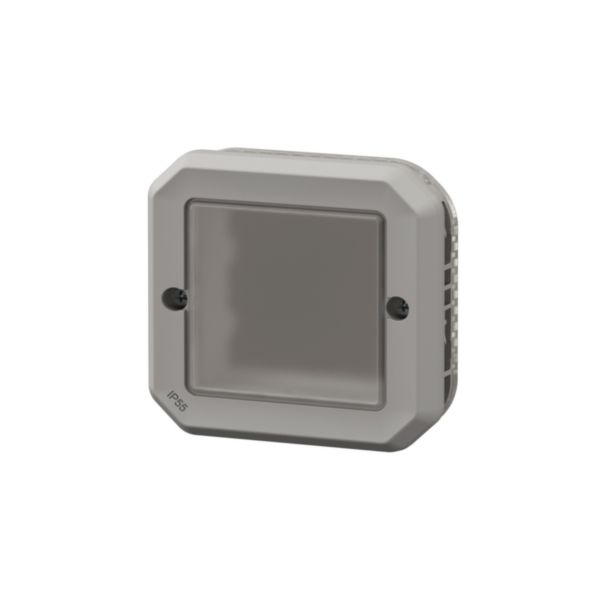

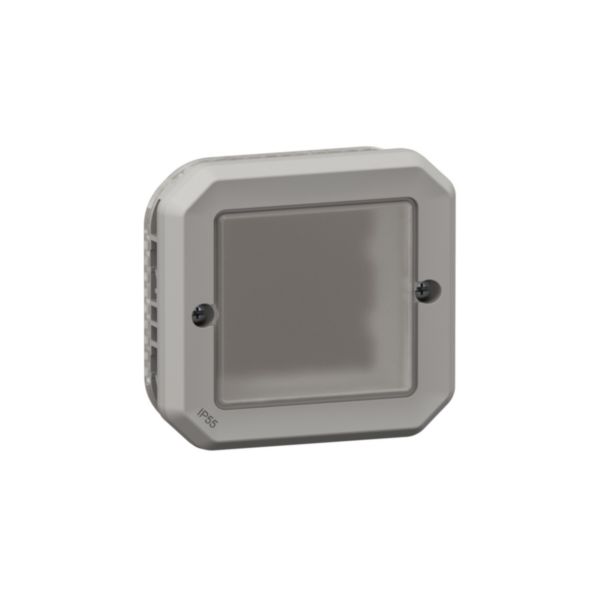

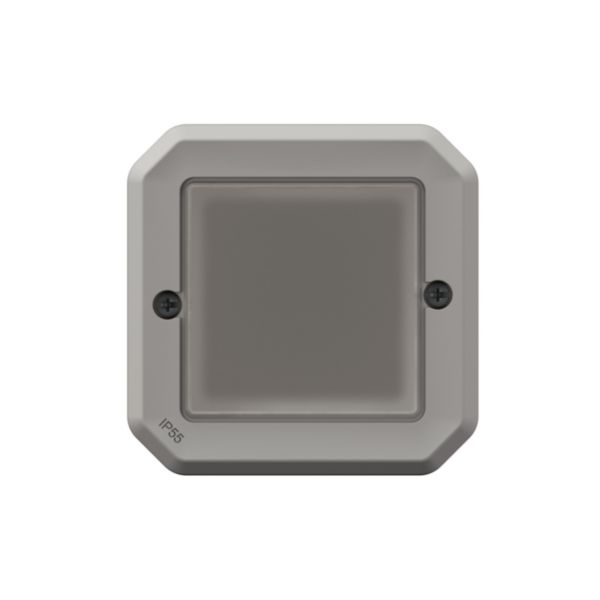

Plexo™ - Mosaic adaptator with flexible membrane - mechanism

Plexo™ LEGRAND

Plexo™ - Mosaic adaptator with flexible membrane - mechanism

REF. 069587L EAN. 3414971879553
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Colour Grey
RAL-number (similar) 7040
With hinged lid No
With label space No
Lockable No
Dimensions SQ45 / SQ45
Device width 70.5 mm
Device height 70.5 mm
Device depth 20 mm
degree of impact strength (IK) Not applicable
Degree of protection (IP) Not applicable
Operating / setting temperature -5-40 °C
Storage temperature -25-60 °C
Halogen free Yes
Antimicrobial treatment No
Label space/information surface No
Mounting method Other

Documentation

2 documents
Technical Sheet
F03590EN-01.pdf pdf (0.8 Mo)
Technical Sheet
F03590FR-01.pdf pdf (0.79 Mo)
1 document
Catalogue Commercial Page
ex223001_0995.pdf pdf (0.09 Mo)
3 documents
3D Autocad
3D_LG-069587L.stp ifc (0.59 Mo)
BIM Data
BIM Data
4 documents
Agreement
AENOR-030/002621 (0.71 Mo)
Agreement
VDE-40057978 (1.18 Mo)
Agreement
Agreement
OC / CB-FR_715726 (0.74 Mo)
