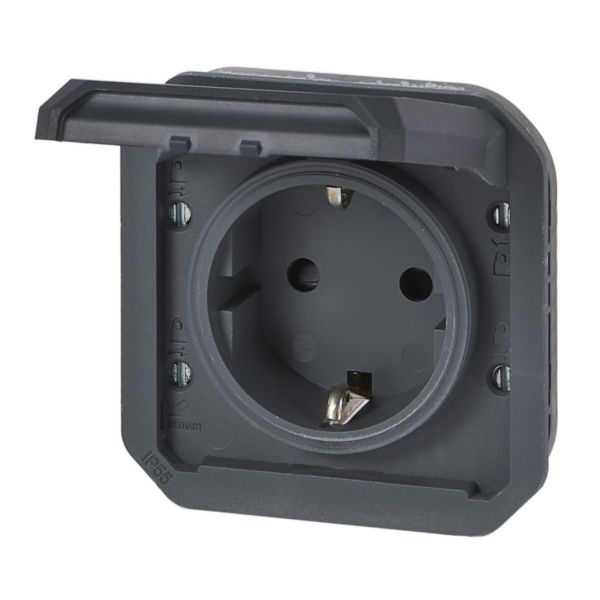

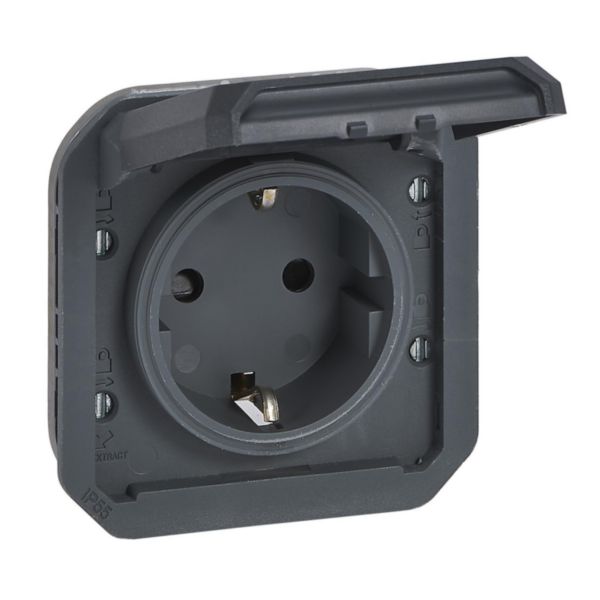

Name: Plexo™ - German std socket outlet with screw terminals - Anthracite - mechanism
SKU: 069839L

Plexo™ - German std socket outlet with screw terminals - Anthracite - mechanism

Plexo™ LEGRAND

Plexo™ - German std socket outlet with screw terminals - Anthracite - mechanism

REF. 069839L EAN. 3414971883611

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor	No
Protective contact	Other
Number of active contacts (round)	2
Number of active contacts (flat)	0
Number of active contacts (square)	0
Assembly arrangement	Basic element with full cover plate
With complemantary luminous signal	No
Number of ports USB-A	0
Number of ports USB-C	0
Number of socket outlets	1
Socket outlets phase-separated	No
Number of modules (module system)	2
Number of socket outlets switchable	0
Number of phases	1
Imprint/indication	Degree of protection (IP)
Connection type	Screwed terminal
With hinged lid	Yes
With enhanced contact protection	Yes
Label space/information surface	No
Colour	Anthracite
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	No
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Other
Type of fastening	Mounting with screw
Material	Plastic

Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No
With on/off switch	No
Rotated central insert	No
Nominal current	16 A
Nominal voltage	250 V
Degree of protection (IP), connected plug	IP44
Frequency	50-60 Hz
Suitable for degree of protection (IP)	IP55
degree of impact strength (IK)	IK08
Device width	70.5 mm
Device height	70.5 mm
Device depth	46 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	Yes
Compliant with UK Building Regulations Part M	No
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Voltage type	AC
Terminal marking indication	Yes
Prewired	No
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
Cable support	Not applicable
Connected object	No
