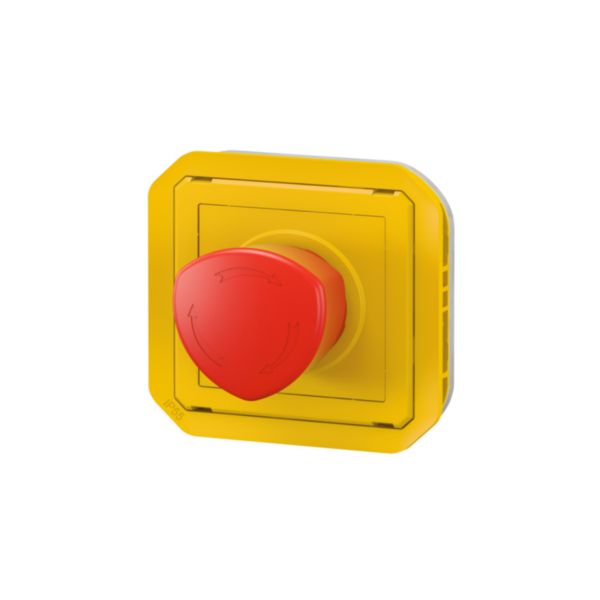

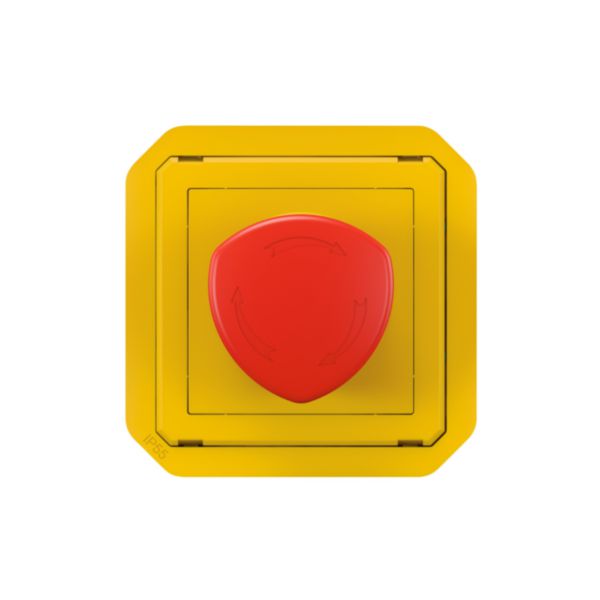

Plexo™ - emergency stay push mushroom head push-turn - yellow - mechanism
Plexo™
LEGRAND
Plexo™ - emergency stay push mushroom head push-turn - yellow - mechanism
REF. 069549L
EAN.
3414971878747
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Unlocking method | Turn-release |
|---|---|
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Degree of protection (IP) | IP55 |
| With lighting | No |
| Hole diameter | 22.5 mm |
| Connection type auxiliary circuit | Screw connection |
| Width | 70.5 mm |
| Height | 70.5 mm |
|---|---|
| Depth | 69 mm |
| degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Voltage type | AC |
| Nominal voltage | 220-250 V |
| Terminals capacity | 1.5-2.5 mm² |
Documentation
3 documents
Instruction Use
Technical Sheet
Technical Sheet
1 document
Catalogue Commercial Page
3 documents
BIM Data
3D Autocad
BIM Data
