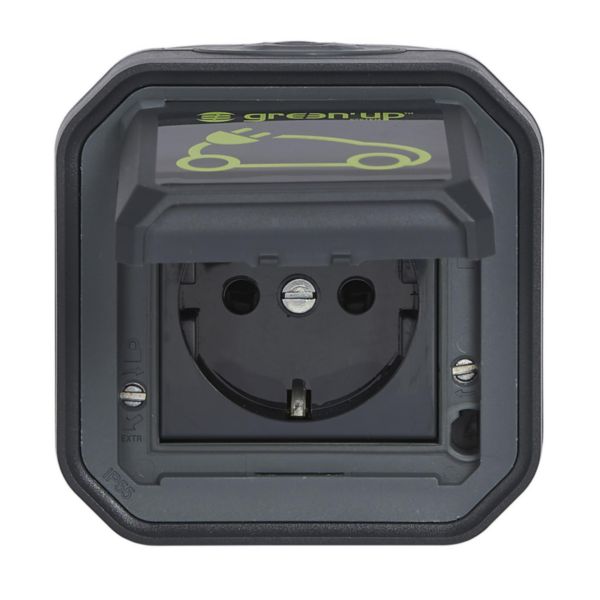

Plexo electric vehicle german standard socket-outlet 16A 230V - Complete surface mounting - Anthracite

Plexo LEGRAND

Plexo electric vehicle german standard socket-outlet 16A 230V - Complete surface mounting - Anthracite

REF. 069708L EAN. 3414972567688

The waterproof Plexo complete surface anthracite electric vehicle socket allows to safely recharge electric and hybrid vehicles supplied in modes 1 and 3, on a daily basis.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The waterproof Plexo complete surface anthracite electric vehicle socket allows to safely recharge electric and hybrid vehicles supplied in modes 1 and 3, on a daily basis.

Product characteristics
  • Complete product, ready for surface installation.
  • IP55: protected against dust and water spray from all directions)
  • IK08: 5 joules shock resistance.
  • 2P+E 16A 230V socket outlet equipped with Green'Up System, a Legrand technology.
  • Optimised terminal blocks, metal contacts with silver surface treatment.

The product's benefits

Installation
  • The thin, highly rigid mounting plate is easy to fix to the wall, and gives great freedom of movement for wiring. The flexible lip on the back of the plate adapts to the shape of the wall.
Avantages
  • Green'up System patent: The EV recognises the Green'up Access secure infrastructure and selects the maximum power that can be delivered by the socket (reducing charging time).

Technical characteristics

Mounting method Surface mounted
Model Charging socket outlet
Standard Other
Connection system Screw connection
With interlocking actuator No
With access interlocking No
Degree of protection (IP) IP55
Width 82 mm
Height 85 mm
Depth 64 mm
Nominal voltage 250 V
Max. nominal current 16 A
Type of current AC single phase
LED integrated No
Contact material Other
Surface treatment contacts Silver-plated
degree of impact strength (IK) IK08
Operating / setting temperature (Min-Max) -10-40 °C
Storage temperature (Min-Max) -25-60 °C
Colour Anthracite
Terminals capacity (Min-Max) 1.5-2.5 mm²

Documentation

3 documents
Instruction Use
LE14383AA_1.pdf pdf (1.94 Mo)
Technical Sheet
F04029EN-00.pdf pdf (1.11 Mo)
Technical Sheet
F04029FR-00.pdf pdf (1.12 Mo)
2 documents
Catalogue Technical Page
ex223001_0514.pdf pdf (0.19 Mo)
Catalogue Commercial Page
ex223001_0513.pdf pdf (0.11 Mo)
