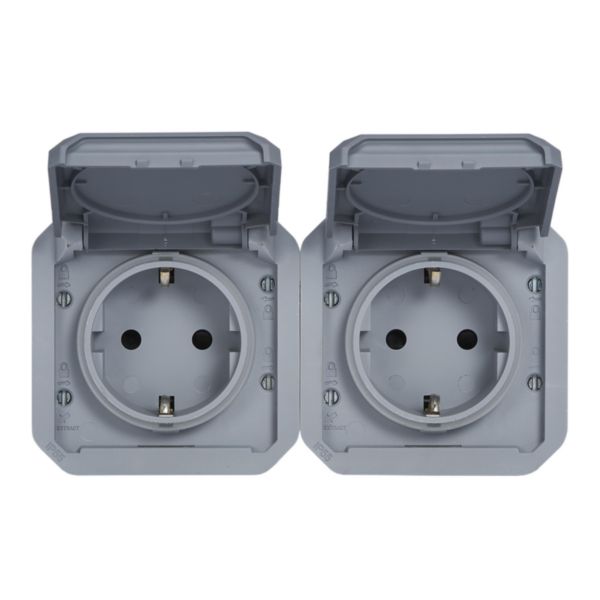

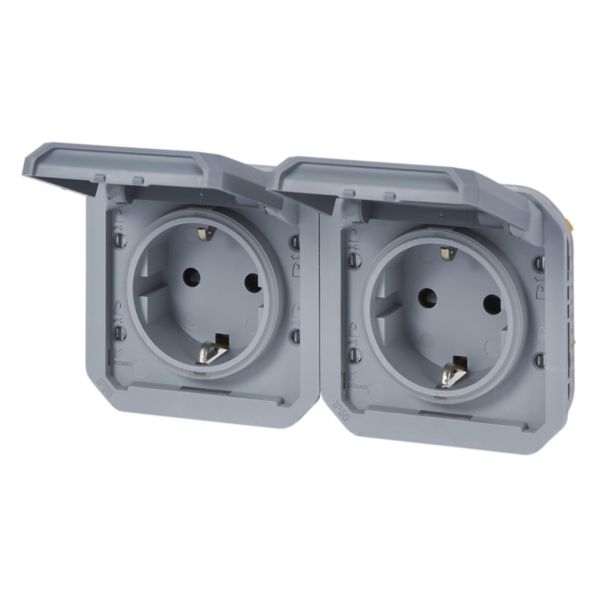

Plexo™ - double prewired horizontal german standard socket-outlet 16A 250V - Mechanism - Grey

Plexo™ LEGRAND

Plexo™ - double prewired horizontal german standard socket-outlet 16A 250V - Mechanism - Grey

REF. 069576L EAN. 3414971879249

The grey Plexo composable waterproof double socket-outlet can be used to connect electrical or electronic equipment in any location where resistance to water, dust and impact is required. For indoor or outdoor use.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The grey Plexo composable waterproof double socket-outlet can be used to connect electrical or electronic equipment in any location where resistance to water, dust and impact is required. For indoor or outdoor use.

Product characteristics
  • Product to be completed either with a surface-mounted box or a flush-mounted support frame.
  • IP55: protected against dust and water spray from all directions
  • IK08: 5 joules shock resistance.
  • 2P+E 16A 250V socket outlet. Automatic terminals : quick connection without tools with colour coding.

The product's benefits

Installation
  • The mechanism is easy to install without tools and can be removed by simply pressing on the sides. The clipping system ensures high resistance to wire pressure.
Usage
  • Two pre-wired sockets: only 1 mechanism to be wired.
Avantages
  • A prewired socket with no visible connecting wire for simpler wiring.
  • A 4-point (1/4 turn) front closure to ensure waterproofness whatever the configuration of the installation.

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 4
Number of active contacts (flat) 0
Number of active contacts (square) 0
Assembly arrangement Basic element with full cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 2
Number of modules (module system) 4
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication Degree of protection (IP)
Connection type Push-in clamp
With hinged lid Yes
With enhanced contact protection Yes
Label space/information surface No
Colour Grey
RAL-number (similar) 7046
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Other
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Degree of protection (IP), connected plug IP44
Frequency 50-60 Hz
Suitable for degree of protection (IP) IP55
degree of impact strength (IK) IK08
Device width 141.5 mm
Device height 70.5 mm
Device depth 48.1 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE Yes
Operating / setting temperature -10-40 °C
Storage temperature -25-60 °C
Voltage type AC
Terminal marking indication Yes
Prewired Yes
Terminals capacity 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section 1.5-2.5 mm²
Connected object No
