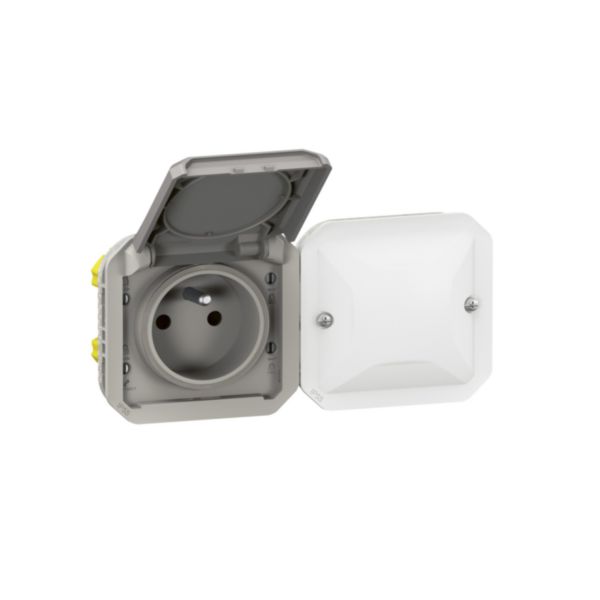

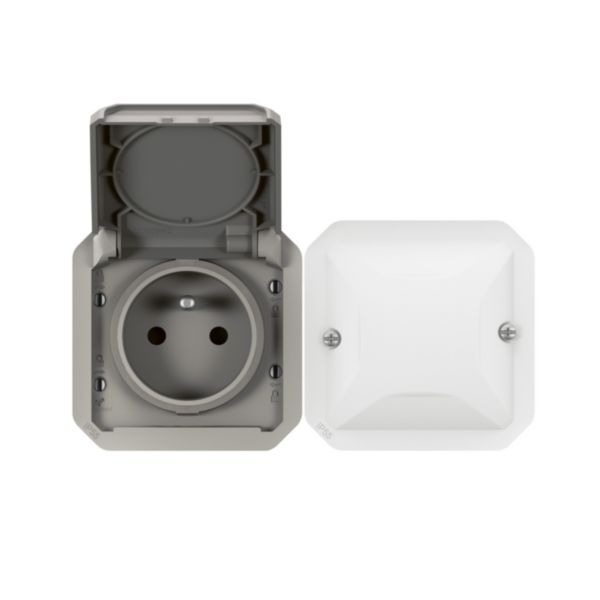

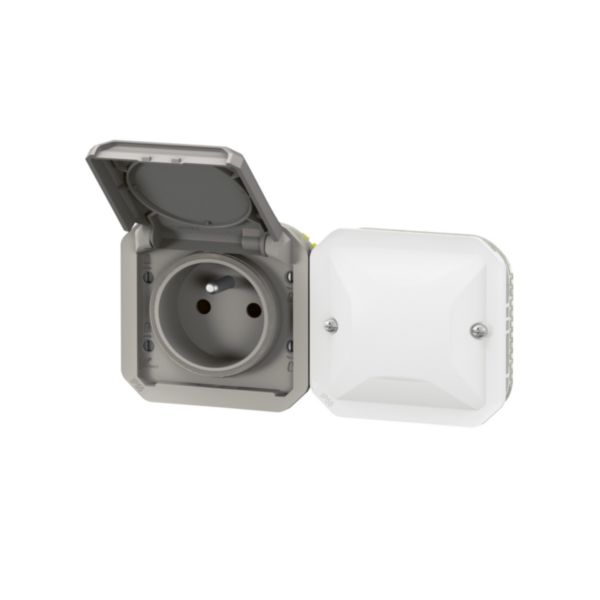

Plexo connected socket outlet fb standard - grey - mechanism

Name: Plexo connected socket outlet fb standard - grey - mechanism
SKU: 069872L

Legrand

REF. 069872L EAN. 3414972337458

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Earthing pin
Concurrently switching neutral conductor	No
Protective contact	Round
Number of active contacts (round)	2
Number of active contacts (flat)	0
Number of active contacts (square)	0
Assembly arrangement	Basic element with complete housing
With complemantary luminous signal	Yes
Number of ports USB-A	0
Number of ports USB-C	0
Number of socket outlets	1
Socket outlets phase-separated	No
Number of modules (module system)	2
Number of socket outlets switchable	1
Number of phases	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	Yes
Label space/information surface	No
Colour	Grey
Metallic colour	No
Transparent	No
Lockable	Yes
Eject-mechanism	No
Insulated mounting	No
With function lighting	Yes
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Surface mounted
Type of fastening	Other
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated

Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	Yes
Number of loop throughs	1
With on/off switch	Yes
Colour of switch operator	Grey
Rotated central insert	No
Nominal voltage	240 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP55
degree of impact strength (IK)	IK08
Device width	141.5 mm
Device height	70.5 mm
Device depth	50.5 mm
Compatible with Apple HomeKit	Yes
Compatible with Amazon Alexa	Yes
Compatible with Google Assistant	Yes
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
Built-in depth	0 mm
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Voltage type	DC
Power Delivery	No
Terminal marking indication	Yes
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Energy distribution
Application name	Home + Control
Programming way	Smartphone apps

4 documents

Select all

Instruction Use

LE13238AA_NL.pdf pdf (4.26 Mo)

Instruction Use

LE13238AA.pdf pdf (4.09 Mo)

Technical Sheet

F03478EN-00.pdf pdf (0.59 Mo)

Technical Sheet

F03478FR-00.pdf pdf (0.57 Mo)

1 document

Select all

Agreement

Decl. UE RED-A 4229 A (0.45 Mo)
