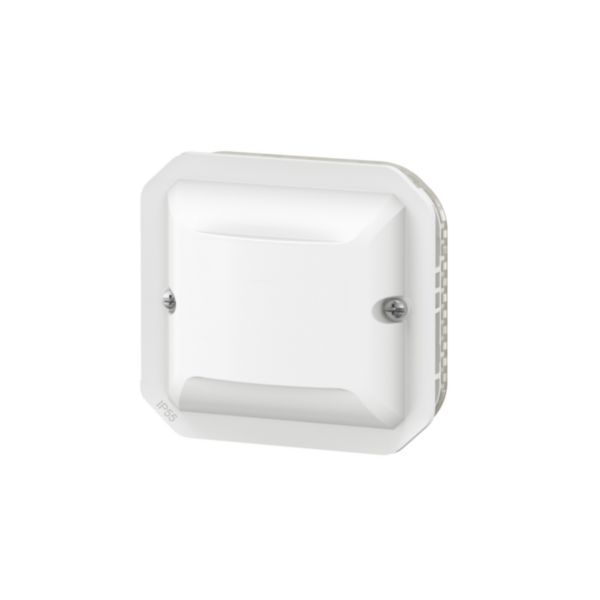

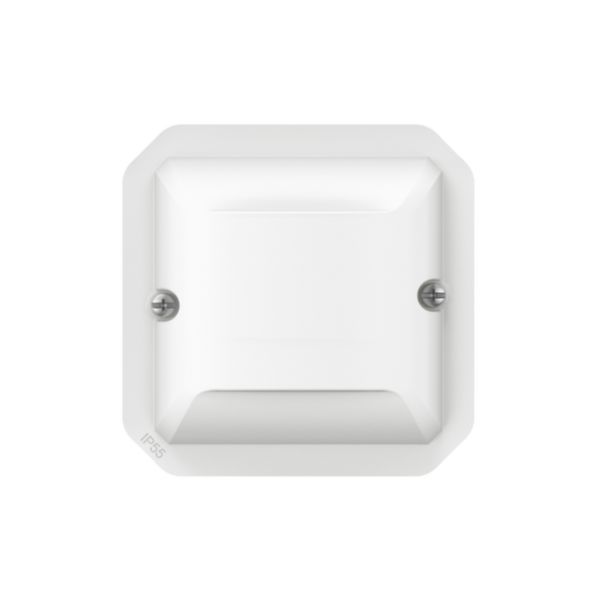

Plexo™ - automatic switch w/o neutral - Grey/White/Anthracite - mechanism
Plexo™
LEGRAND
Plexo™ - automatic switch w/o neutral - Grey/White/Anthracite - mechanism
REF. 069520L
EAN.
3414971878112
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Movement sensor |
|---|---|
| Movement sensor/presence detector technology | Passive infrared |
| Constant light control | Yes |
| HVAC-control | No |
| Forced switch off | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Optimum mounting height | 1.2 m |
| Staircase light controller | Yes |
| Bridging switch | No |
| Max. reach sideways | 6 m |
| Max. reach frontally | 8 m |
| Diameter reach on floor | 6 m |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | No |
| Response value sensitivity adjustable | No |
| Response value luminosity adjustable | Yes |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Other |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Connection type | Screwed terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| Colour | Grey |
| RAL-number (similar) | 7046 |
|---|---|
| Transparent | No |
| Degree of protection (IP) | IP55 |
| degree of impact strength (IK) | IK07 |
| Voltage type | AC |
| Frequency | 47-63 Hz |
| Nominal voltage | 230-230 V |
| Min. switch-on time | 6 s |
| Max. duty cycle | 6 min |
| Detection angle horizontal | 130-130 ° |
| Response value luminosity | 3-1000 lx |
| Max. switching power | 300 W |
| Substation input | No |
| With alarm function | No |
| With acoustic sensor | No |
| Ambient temperature | -5-35 °C |
| Width | 70.5 mm |
| Height | 70.5 mm |
| Depth | 54 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | 0-35 °C |
| Storage temperature | -5-35 °C |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1.5-1.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Auto switch | Yes |
Documentation
2 documents
Technical Sheet
Instruction Use
1 document
Catalogue Commercial Page
3 documents
BIM Data
BIM Data
3D Autocad
