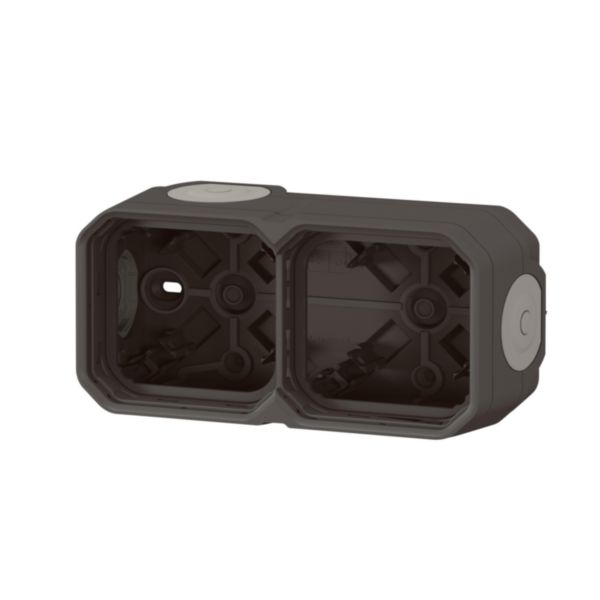

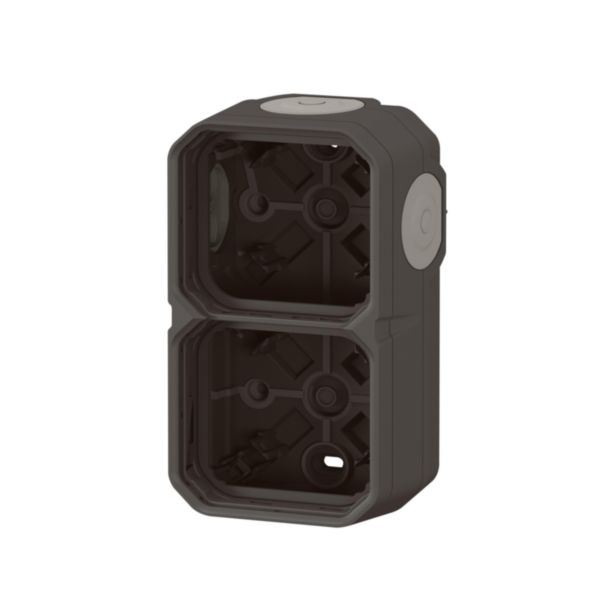

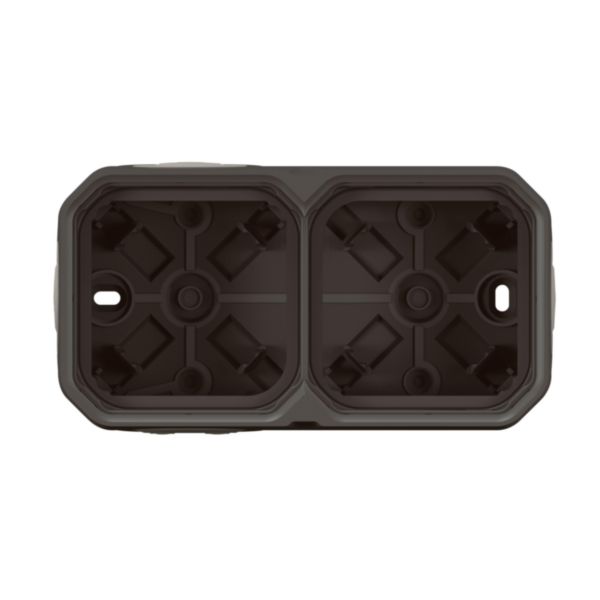

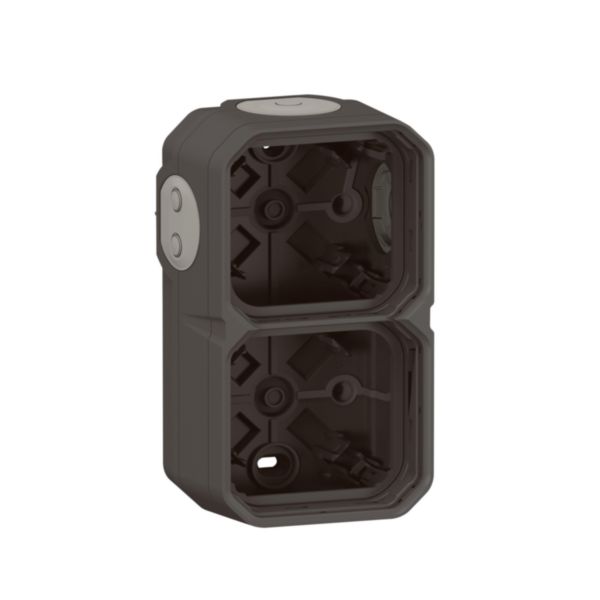

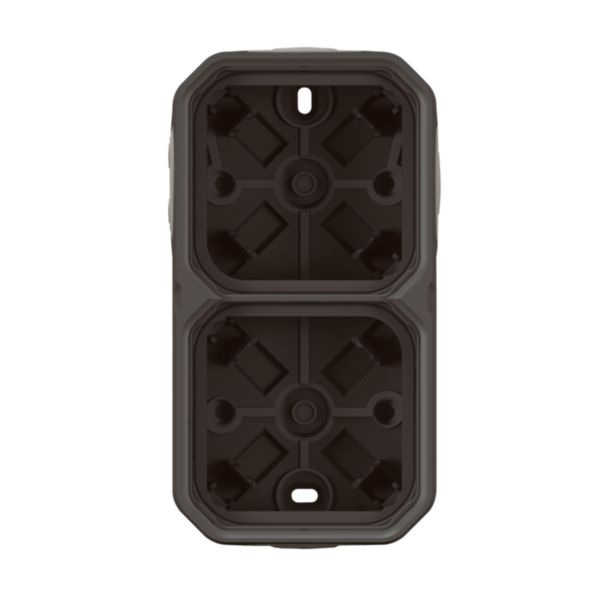

Plexo™ - 2-gang surface box with 4 membrane glands (3x1 entry + 1x2 entries) - Horizontal and vertical - IP55 - Anthracite

Plexo™ LEGRAND

Plexo™ - 2-gang surface box with 4 membrane glands (3x1 entry + 1x2 entries) - Horizontal and vertical - IP55 - Anthracite

REF. 069602L EAN. 3414971879874

The anthracite waterproof 2-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). This box conception gives the opportunity to install it horizontally or vertically. For indoor or outdoor use.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The anthracite waterproof 2-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). This box conception gives the opportunity to install it horizontally or vertically. For indoor or outdoor use.

Product characteristics
  • Surface box to install functions supplied in composable mode (mechanism products).
  • IP55 : protected against dust and water spary from all directions.
  • Plastic materials with reinforced UV protection

The product's benefits

Installation
  • A two-part box : a thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring (the flexible part on the back of the product adpats to the shape of the wall) and a frame, to be clipped on the mounting plate.
Usage
  • The box can be used for both vertical and horizontal installation thanks to the 90° symmetrical mechanims.
Avantages
  • The box is composed of a mounting plate and a frame. The thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring. The flexible part on the back of the product adpats to the shape of the wall.
  • The box can be used for both vertical and horizontal installation thanks to the 90° symmetrical mechanims.

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Number of socket outlets 2
Suitable for modular domestic switching devices No
Number of units 2
Mounting direction Horizontal and vertical
Shape Other
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Anthracite
RAL-number (similar) 7016
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry No
Shock resistant No
Degree of protection (IP) Other
Width 82 mm
Height 155 mm
Depth 57 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature -10-40 °C
Storage temperature -25-60 °C
Tube diameter for wall mounted product 16-25 mm
Maximum Input cable diameter 17 mm
Entry membrane gland type Flexible to puncture
Cable support Not applicable
