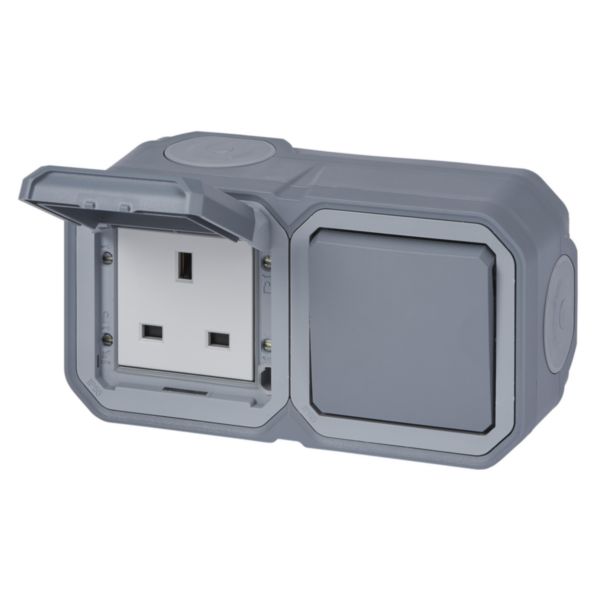

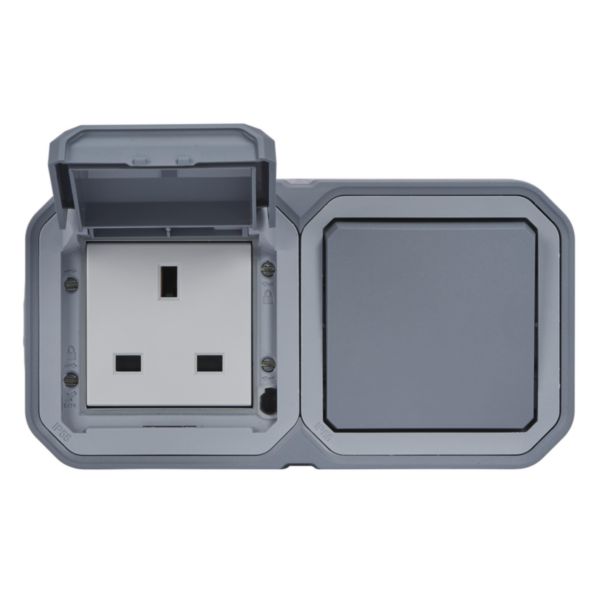

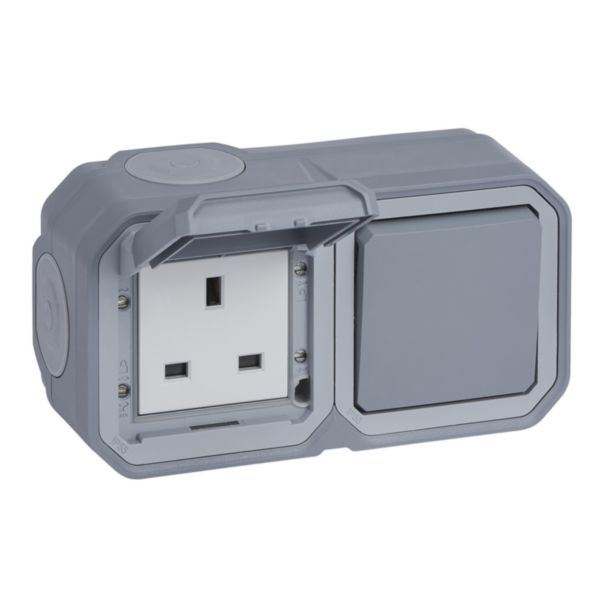

Plexo™ - 2 gang British standard 13a socket outlet + 2 way switch - Grey - surface

Plexo™ LEGRAND

Plexo™ - 2 gang British standard 13a socket outlet + 2 way switch - Grey - surface

REF. 069750L EAN. 3414971882409
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Type of switch/push button Two-way switch
Type of socket outlet British Standard
Number of socket outlets 1
Method of operation Rocker/button
Mounting direction Horizontal and vertical
Type of fastening Mounting with screw
With lighting No
Mounting method Surface mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Grey
RAL-number (similar) 7046
Transparent No
Suitable for degree of protection (IP) IP55
Nominal voltage 250 V
Nominal current socket outlet 13 A
Overvoltage protection No
Fault current protection No
With miniature fuse No
Number of active contacts (round) 0
Number of active contacts (flat) 2
Min. depth of built-in installation box 0 mm
Device width 156 mm
Device height 85 mm
Device depth 64 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK08
Operating / setting temperature -10-40 °C
Storage temperature -25-60 °C
Voltage type AC
Mandatory neutral Yes
Terminal marking indication Yes
Antimicrobial treatment No
Prewired No
Connection type Screwed terminal
Terminals capacity 2.5-4 mm²
Cable nature for connection Flexible or rigid
Cable section 2.5-4 mm²
Label space/information surface No
Fitted with USB plug No
Tube diameter for wall mounted product 16-25 mm
