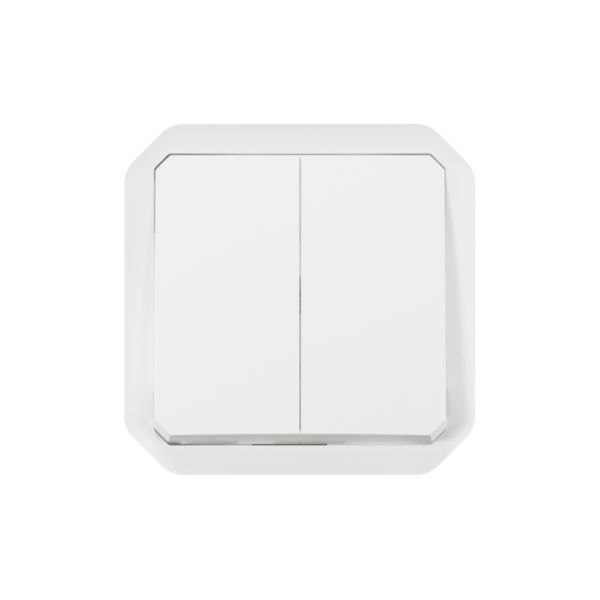

Plexo™ - 2 gang 2-way switch or 2 gang push button - White - mechanism
Plexo™
LEGRAND
Plexo™ - 2 gang 2-way switch or 2 gang push button - White - mechanism
REF. 069625L
EAN.
3414971880344
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Method of operation | Rocker/button |
|---|---|
| Mounting direction | Horizontal |
| Type of fastening | Mounting with screw |
| With lighting | No |
| Mounting method | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Suitable for degree of protection (IP) | IP55 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
|---|---|
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device depth | 46.3 mm |
| degree of impact strength (IK) | IK08 |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Connection type | Push-in clamp |
| Terminals capacity | 1.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Fitted with USB plug | No |
