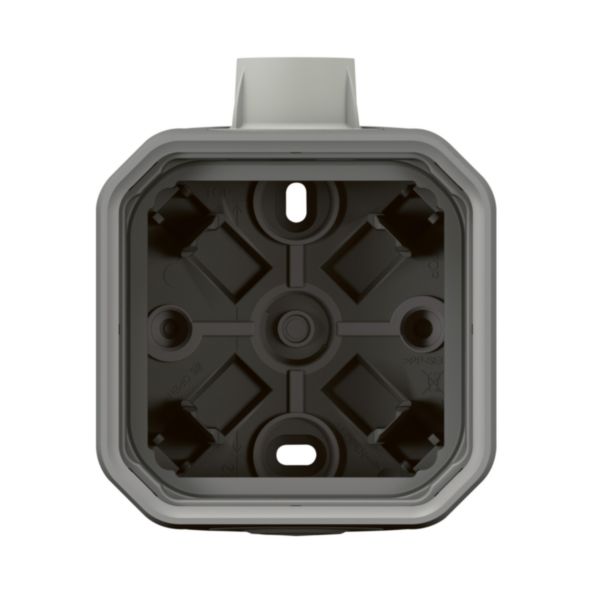

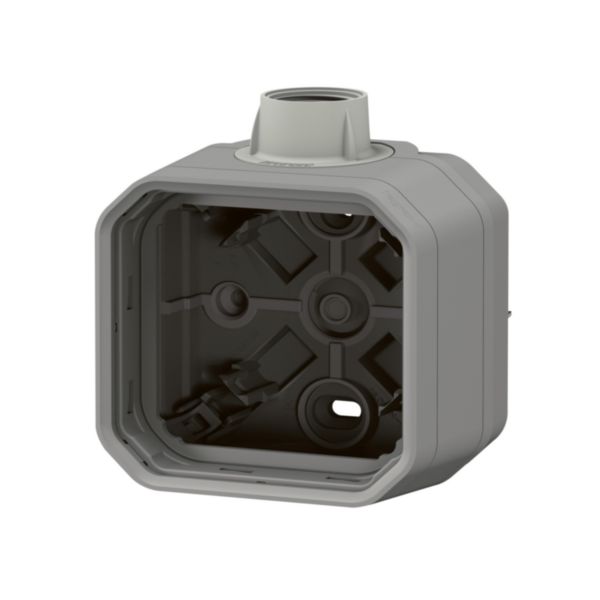

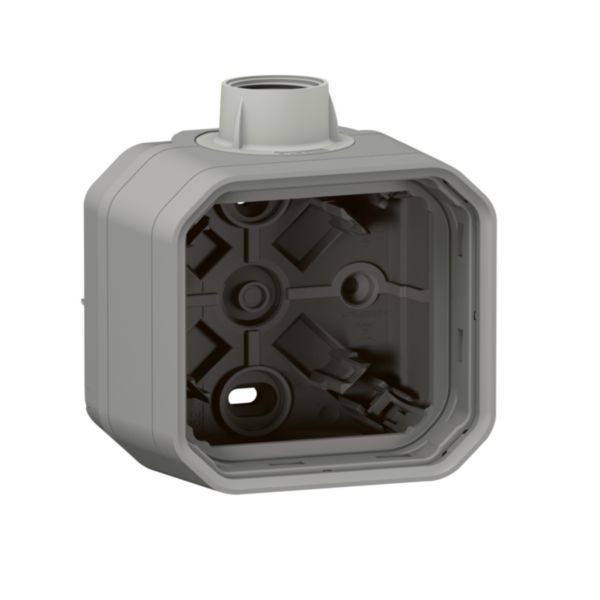

Plexo™ - 1-gang surface box with 1 M20 membrane gland and 1 flexible membrane gland - IP55 - Grey

Plexo™ LEGRAND

Plexo™ - 1-gang surface box with 1 M20 membrane gland and 1 flexible membrane gland - IP55 - Grey

REF. 069656L EAN. 3414971880986

The grey waterproof 1-gang box M20 Plexo allows a surface mounting of all Plexo functions. This box conception gives the opportunity to wire the mechanims from the top, bottom, sides or back of the box. For indoor or outdoor use.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The grey waterproof 1-gang box M20 Plexo allows a surface mounting of all Plexo functions. This box conception gives the opportunity to wire the mechanims from the top, bottom, sides or back of the box. For indoor or outdoor use.

Product characteristics
  • Surface box to install functions supplied in composable mode (mechanism products).
  • IP55 : protected against dust and water spary from all directions.
  • Plastic materials with reinforced UV protection

The product's benefits

Installation
  • A two-part box : a thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring (the flexible part on the back of the product adpats to the shape of the wall) and a frame, to be clipped on the mounting plate.
Avantages
  • The box is composed of a mounting plate and a frame. The thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring. The flexible part on the back of the product adpats to the shape of the wall.
  • Cables can be fed in from the top, bottom, right, left (or rear) thanks to the mechanism that is fixed to the 90° symmetrical plate and the M20 entry is integrated into the removable end cap.

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Number of socket outlets 1
Suitable for modular domestic switching devices No
Number of units 1
Mounting direction Horizontal and vertical
Shape Other
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Grey
RAL-number (similar) 7046
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry No
Shock resistant No
Degree of protection (IP) Other
Width 82 mm
Height 85 mm
Depth 57 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature -10-40 °C
Storage temperature -25-60 °C
Entry membrane gland type Other
Cable support Not applicable

Documentation

2 documents
Technical Sheet
F03421EN-02.pdf pdf (1.91 Mo)
Technical Sheet
F03421FR-02.pdf pdf (1.9 Mo)
1 document
Catalogue Commercial Page
ex223001_0795.pdf pdf (0.15 Mo)
3 documents
3D Autocad
3D_LG-069656L.stp ifc (1.19 Mo)
BIM Data
BIM Data
9 documents
PEP
LGRP-01292-V02.01-FR.pdf pdf (0.82 Mo)
Agreement
Agreement
AENOR-030/002621 (0.71 Mo)
Agreement
VDE-40057978 (1.18 Mo)
Agreement
Agreement
OC / CB-FR_715939 (0.64 Mo)
Agreement
Agreement
CEBEC-23412 (4.42 Mo)
Agreement
OC / CB-FR_715726 (0.74 Mo)
