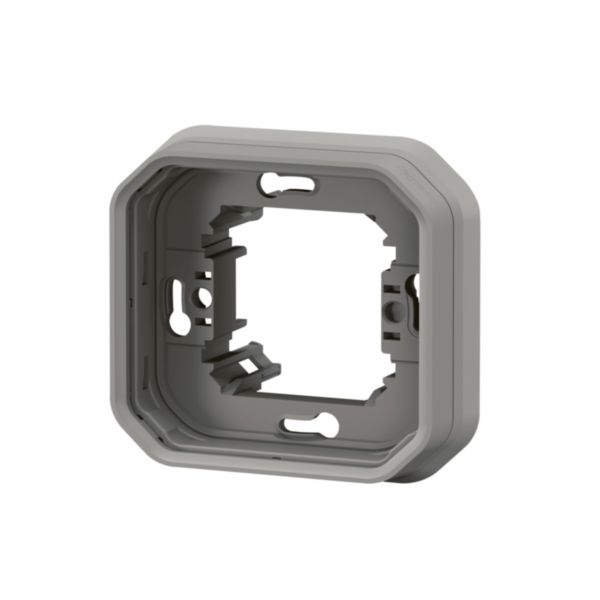

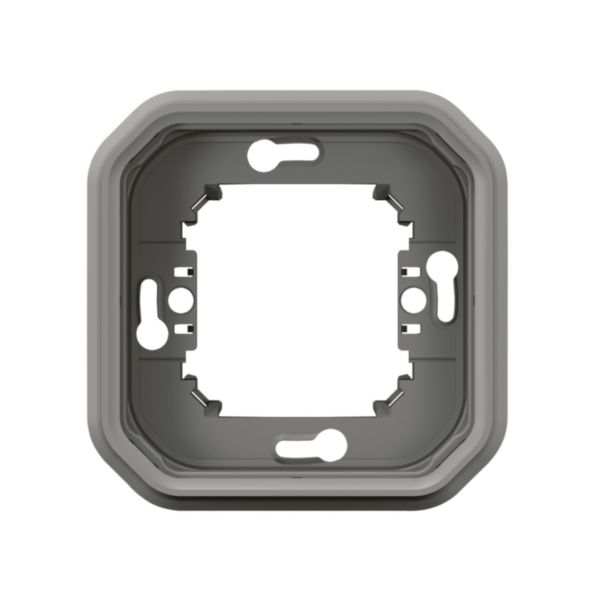

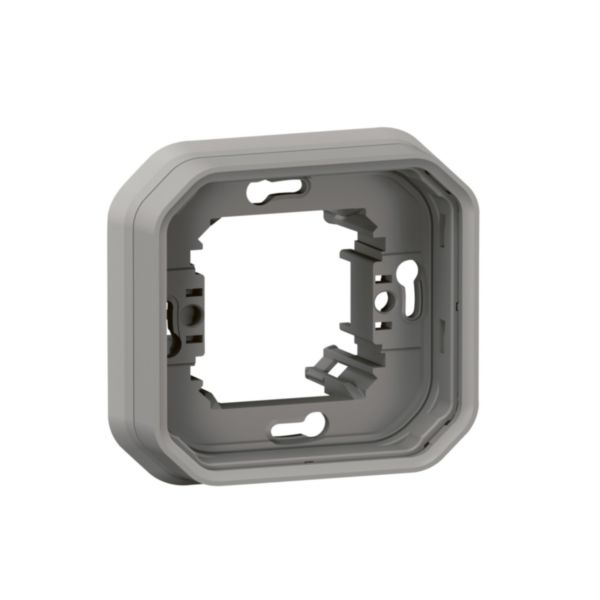

Plexo™ - 1 gang flush mounting support frame - Grey

Plexo™ LEGRAND

Plexo™ - 1 gang flush mounting support frame - Grey

REF. 069681L EAN. 3414971881310
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
RAL-number (similar) 7046
Transparent No
With hinged lid No
Type of fastening Screw mounting
Width 85 mm
Height 85 mm
Depth 43.5 mm
Operating / setting temperature -10-40 °C
Storage temperature -25-60 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

2 documents
Technical Sheet
F03421EN-02.pdf pdf (1.91 Mo)
Technical Sheet
F03421FR-02.pdf pdf (1.9 Mo)
1 document
Catalogue Commercial Page
ex223001_0795.pdf pdf (0.15 Mo)
3 documents
3D Autocad
3D_LG-069681L.stp ifc (0.78 Mo)
BIM Data
BIM Data
17 documents
Agreement
OC / CB-FR_715939 (0.64 Mo)
Agreement
Agreement
Agreement
Agreement
NF-NF012_4184 (0.5 Mo)
PEP
LGRP-01292-V02.01-FR.pdf pdf (0.82 Mo)
Agreement
Agreement
AENOR-030/002621 (0.71 Mo)
Agreement
VDE-40057978 (1.18 Mo)
Agreement
Agreement
Agreement
NF-NF012_3294/A2 (0.74 Mo)
Agreement
OC / CB-FR_717742 (0.53 Mo)
Agreement
OC / CB-FR_718017 (0.32 Mo)
Agreement
Agreement
OC / CB-FR_719272 (0.33 Mo)
Agreement
OC / CB-FR_715726 (0.74 Mo)
