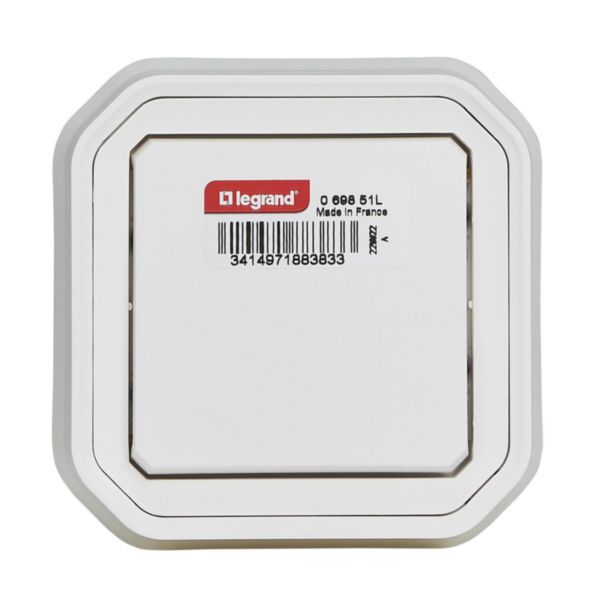

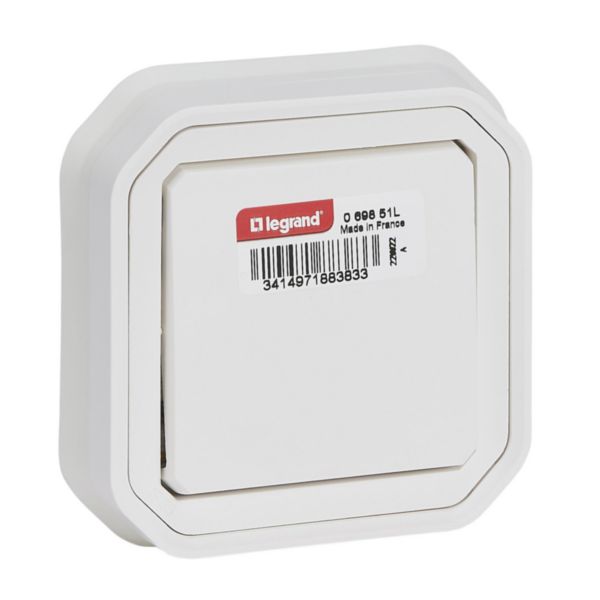

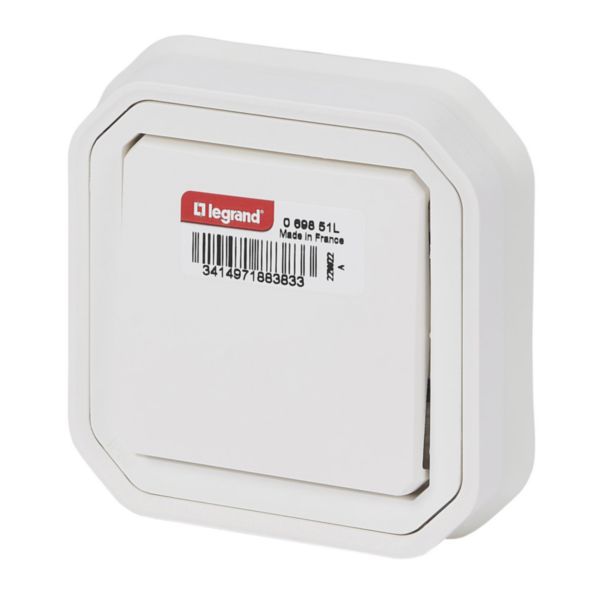

Plexo™ - 1 gang 2-way switch - White - flush

Name: Plexo™ - 1 gang 2-way switch - White - flush
SKU: 069851L

Plexo™ LEGRAND

REF. 069851L EAN. 3414971883833

Compare You can only compare 4 products, you must remove 1 to add this one

Wiring system	Two-way switch
Method of operation	Rocker/button
Assembly arrangement	Basic element with central cover plate
Push button switch	No
Number of rockers	1
Mounting method	Flush-mounted
Type of fastening	Screw mounting
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Colour of switch operator	White
Label space/information surface	No
Lighting	No
Suitable for degree of protection (IP)	IP55
degree of impact strength (IK)	IK08
Nominal voltage	250 V
Rated current	10 A

Switching current for fluorescent lamps	10 AX
Monitoring contact	No
Connection type	Push-in clamp
Heating switch	No
Washing machine switch	No
Device width	85 mm
Device height	85 mm
Device depth	57 mm
Built-in depth	28.5 mm
Min. depth of built-in installation box	40 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Voltage type	AC
Frequency	50-60 Hz
Terminal marking indication	Yes
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
